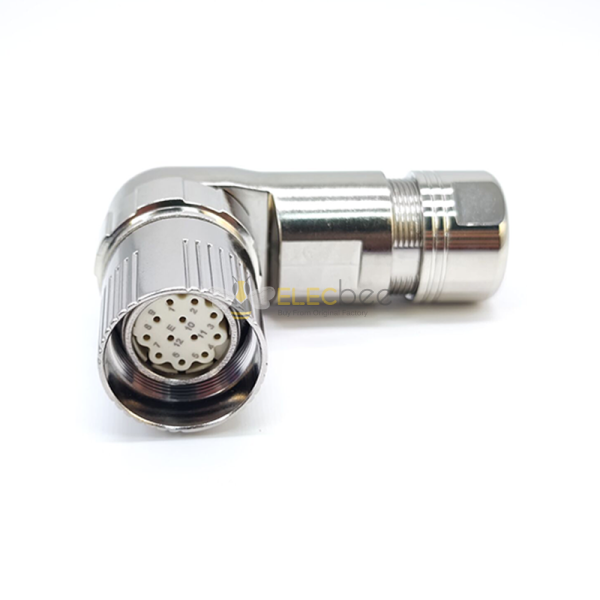

Elecbee Connector M23 12 Pin Female Solder Type for Cable Shield 90 degree

SKU: EB-400-4096
お気に入り
主要特徴

Features:

  • 12pin,Male,90 degree,for Cable,Solder Type,Shield,M23 Connector
  • Male/Female, Straight/right angle
  • wire/pcb/cable,
  • Termination: Soldering/crimping, Front Mount "
  • thread locking mechanism, 23mm metric size, xa0central lock
  • Easy quick connect and disconnect coupling
  • High Quality with 30 days 100% Money back.
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Applications
  • ● xa0Automation
  • ● Transport
  • ● Power generation
  • ● Shipbuilding
  • ● Medicine
もっと見る
属性
Connector Type
Plug
Mounting Type
Cable Type
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
12 Pin
Operating Temperature
-20℃~+85℃
Shielding
Shielded
Ingress Protection
IP67(mated)
Rated Current
8A
Rated Voltage
200V
Connector Series
M23
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
White
