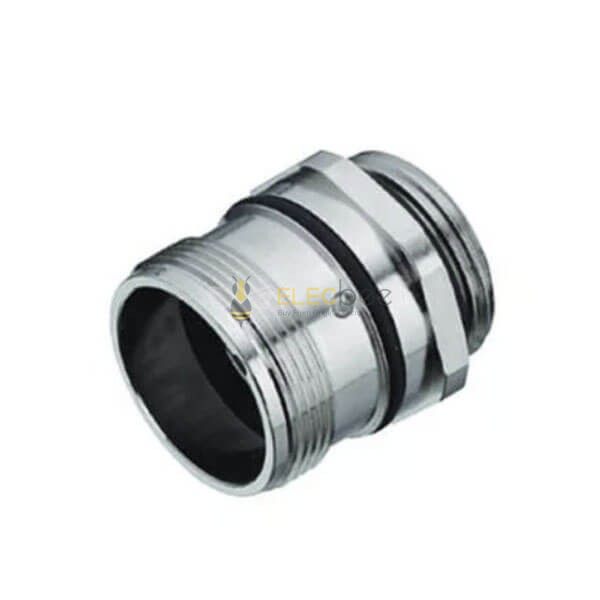

Elecbee Binder M23 Connector 19Pin Female Waterproof Panel Mount Industrial Power Connector Shield

SKU: EB-400-4014
お気に入り
主要特徴

Features:

  • M23, Panel Receptacles, 19pin, Female,Waterproot Straight, For cable, Solder type, Back Mount,Shield
  • Male/Female, Straight/right angle
  • wire/pcb/cable,
  • Termination: Soldering/crimping, Front Mount "
  • thread locking mechanism, 23mm metric size, xa0central lock
  • Easy quick connect and disconnect coupling
  • High Quality with 30 days 100% Money back.
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Applications
  • ● xa0Automation
  • ● Transport
  • ● Power generation
  • ● Shipbuilding
  • ● Medicine
もっと見る
属性
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Back Side Nut
Contact Type
Female Pin
Shell Finish
Nickel Plated
Number of Positions
19 Pin
Operating Temperature
-20℃~+85℃
Ingress Protection
IP67(mated)
Rated Current
8A
Rated Voltage
125V
Connector Series
M23
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
