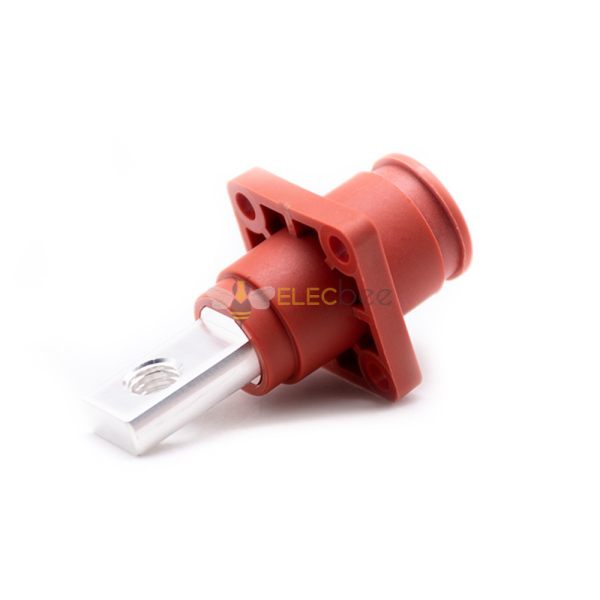

Elecbee Waterproof Socket Energy Battery Storage Connector Female Straight 8mm Bl IP67 Red

SKU: EB.S008.T01.RD
お気に入り
主要特徴
  • Touch Proof .
  • 360°rotating Plug.
  • Compact Robust Design.
  • Various Termination Options.
  • Three Color Are Available.
  • Quick Lock And Press-to- Release Design.
もっと見る
属性
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Clamp
Number of Positions
1 Pin
Operating Temperature
-40℃~+125℃
Shielding
Shielded
Ingress Protection
IP65, IP67
Rated Current
120A
Rated Voltage
1500V MAX
Color
Red
Orientation
Straight
Shell Material
Nylon
Contact Material
Brass
Contact Finish
Silver Plated
Contact Size
8mm
