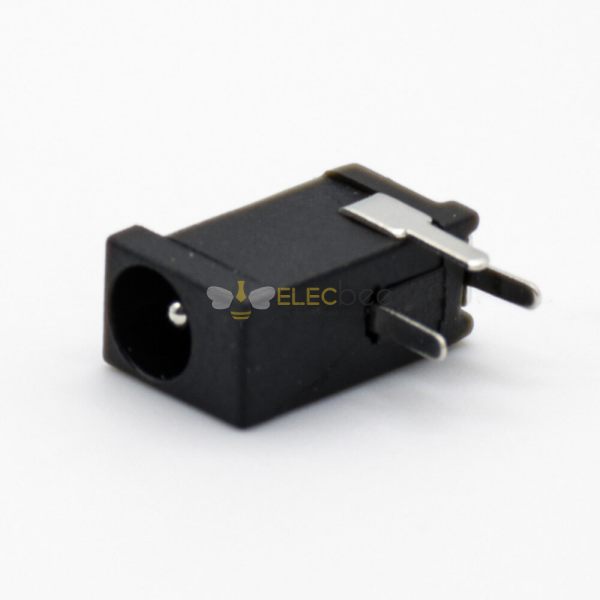

Elecbee DC Connectors High Current Male Jack Through Hole Solder Lug Right Angle 5.5*2.0mm Unshiled

SKU: EB-203-1024
お気に入り
主要特徴

Features:

  • DC Power Connector,Male Jack,Through Hole,solder Lug,Right Angle,Unshiled,5.5*2.0
  • The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.xa0
  • A long shelf life of 10000 insertions and withdrawalsxa0
  • Connector bodies are moulded in ABS plasticxa0
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Audio / Video product
  • Digital devices
  • Remote control
  • Communication products
  • Household electrical appliance
  • Security Products
  • Toy
  • Computer products
  • Fitness equipment
  • Technology Equipment
もっと見る
属性
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Number of Positions
1 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-25℃~+85℃
Shielding
Unshielded
