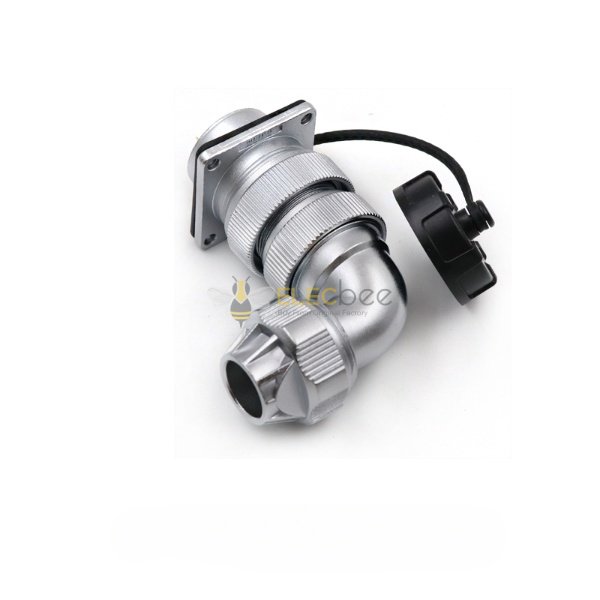

商品图

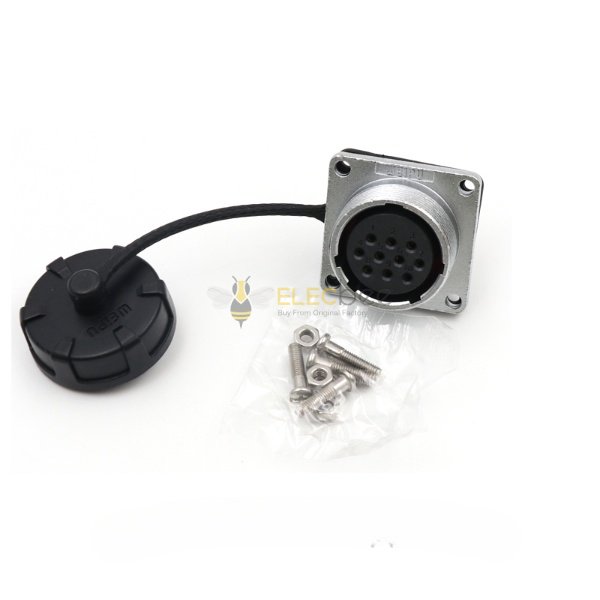

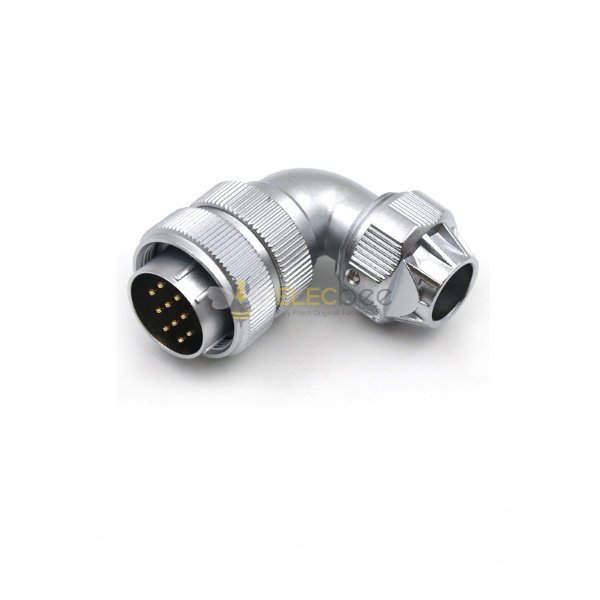

Elecbee 航空オスプラグとメスジャック WF24/10 ピン直角 TU/Z 防水コネクタ

SKU: EB-WF24J10TU-WF24K10Z
お気に入り
主要特徴

Features:

  • Model Number: WF24
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 24mm
  • Number of Contacts: 2/3/4/9/10/12/19Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
もっと見る
属性
コネクタタイプ
プラグ、容器
取り付けタイプ
パネルマウント
終了
ソルダー
連絡先タイプ
男性、女性ピン
シェル仕上げ
クロムメッキ
ポジション数
10ピン
動作温度
-40°C~+85°C
侵入保護
IP65
定格電流
10A
定格電圧
500VAC
特徴
防水性
コネクタシリーズ
WF24
シルバー
固定タイプ
スレッド化
オリエンテーション
右斜め
シェル素材
亜鉛合金
接触材料
ブラス
接点仕上げ
ゴールドメッキ
絶縁材料
PPS
ケーブルの直径
14AWG
シェルサイズ
24
断熱色
ブラック
