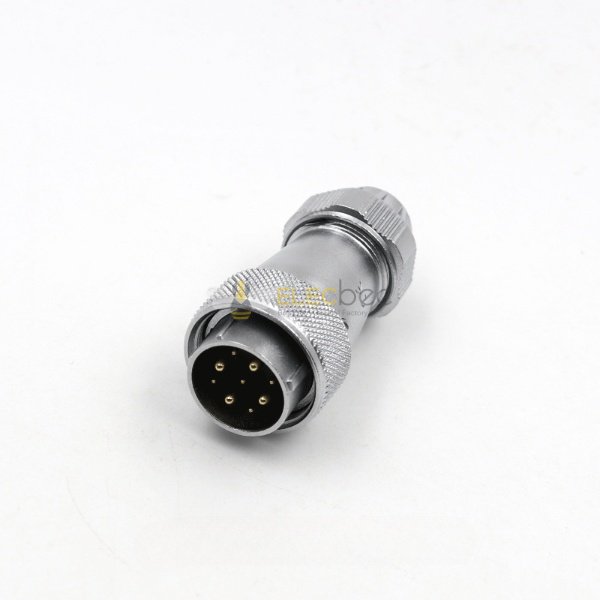

Elecbee 9pin TE Male Plug WF24 Straight Plug with metal clamping-nut Waterproof Connector

SKU: EB-WF24J9TE
お気に入り
主要特徴

Features:

  • Model Number: WF24
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 24mm
  • Number of Contacts: 2/3/4/9/10/12/19Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
もっと見る
属性
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male Pin
Shell Finish
Chrome Plated
Number of Positions
9 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A, 25A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF24
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG, 11AWG
Shell Size
24
Insulation Color
Black
