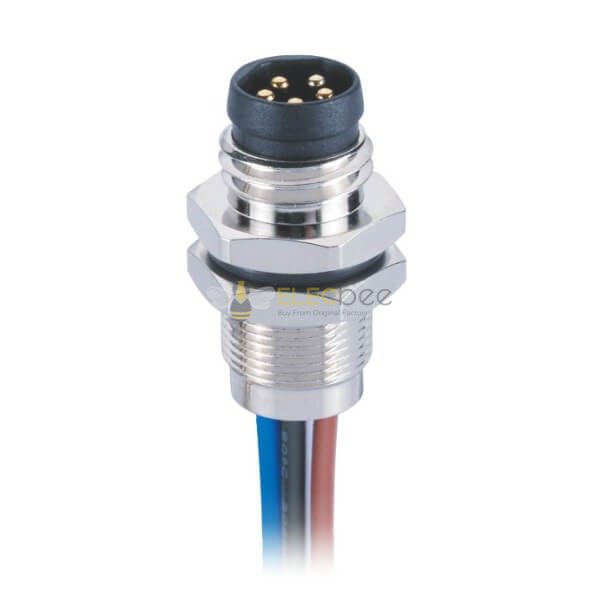

M8 5Pin Back Mount Socket B Coding M8 Male Panel Mount Solder Type With 1M 26AWG Wire

説明

M8 Panel Receptacles

IP67/68 Weatherproof

Plug & Play Connections

Rugged Metal Housing

M8 Panel Receptacles

M8 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.

DIRECT DEAL

EASY ASSEMBLY

QUALITY ASSURANCE

MULTI CORE OPTIONAL

M8 Panel Receptacles
Coding	A / B
Number of Positions	3 / 4 / 5 / 6 / 8
Gender	Male / Female
Orientation	Straight / Right Angle
Mounting Type	PCB Mount / Panel Mount / Cable
Termination Style	Solder Type / PCB Mount
Mounting Feature	Front Mount / Back Mount

PRODUCT DESCRIPTION

1. Choose High-quality Materials

All metal material brass material, can play a 360-degree shielding effect
Strong conductivity,wear resistance,oxidation resistance,in line width protection standards

3. Snap Tight and Waterproof

Strong fixing performance,with waterproofring
Protection against water and resistance

2. Long Service Life

The push-pull self-locking device is easy to install
The interface is durable and not deformed
Durable and corrosion-resistant
Waterproof and moisture-proof

APPLICATION

Miniature sensors

Industrial camera

Electrical car

Packaging, Labeling & Logistic

Factory automation and fieldbus module

Order Information

Product Electrical Performance

配送ガイド

配送	配送期間	在庫品は3日以内に発送予定です。 Elecbeeは毎日17時頃発送します（日曜を除く）。発送後の到着予定日は選択した運送会社によって異なります。 DHLエクスプレス：3～7営業日 DHLeCommerce：12～22営業日 FedEx国際優先：3～7営業日 EMS：10～15営業日書留航空便：15～30営業日
	送料	注文の送料はカートで確認できます。
	配送オプション	注文の送料はカートで確認できます。
	物流追跡	注文発送後、メールで運送番号をお知らせします。「注文追跡」機能で物流状況を確認できます。
返品/保証	返品	返品は通常発送後30日以内に完了する必要があります。返品承認のためカスタマーサービスに連絡してください。商品は未使用で元の梱包を維持してください。送料は顧客負担です。
	保証	すべてのElecbee購入商品は、30日間無条件返品ポリシーと1年間のElecbee製造欠陥保証を受けます。
		この保証は、顧客の不適切な組み立て、取扱説明書の不遵守、製品改変、過失または不適切な使用による欠陥品には適用されません。
注文	購入方法	Elecbeeはオンライン注文をサポートしています。
		カートに追加 > 決済 > 注文提出 > 支払い完了 > 発送
	支払い	PayPal、クレジットカード（Visa、MasterCard、アメリカン・エキスプレス）、銀行振込。

レビュー

ELECBEE

すべてのレビューは認証済み購入者からのものです

1 星

2 星

3 星

17%

4 星

17%

5 星

67%

a****w

Parts arrived and were as advertised.

G****u

Exactly as described – the M8 B-coded 5-pin male socket fits perfectly in my industrial setup. The 1m 24AWG wire is high quality and solder joints held up well. Waterproof seal hasn't failed even under washdown conditions.

z****n

Solid build with a reliable thread locking mechanism. Mounting was straightforward thanks to the back-mount design. Only reason I'm not giving 5 stars is that the instructions were minimal, but it worked flawlessly after installation.

M****I

Great value for the price. Comparable to what we've been buying from our usual supplier, but nearly half the cost. OEM quality seems identical, and the anti-vibration lock keeps it secure even on vibrating machinery.

J****n

Works fine overall. Soldering the 5 pins took some time, but the straight receptacle made access easier. Waterproof rating holds, though I wish the included wire was slightly thicker than 24AWG for longer runs.

J****r

Perfect replacement part for our automation system. The 8mm threaded joint locked in securely and hasn’t loosened. Happy with the 30-day money-back guarantee too—gave me confidence to try it.

Elecbee M8 5Pin Back Mount Socket B Coding Male Panel Mount Straight Waterproof Solder Type With 1M 24AWG Wire
