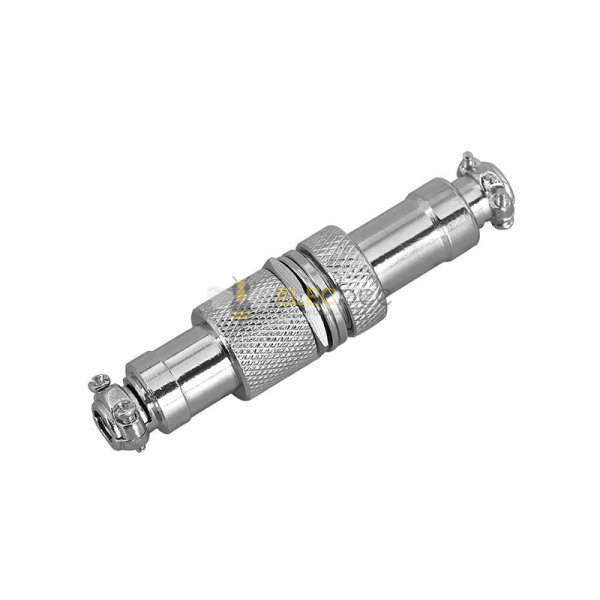

Elecbee GX12 Aviation connector Male and Female (one Pair) 4pin StraightButt-Joint Type Solder Type connector

SKU: EB-403-0099-H
즐겨찾기
핵심 특징

High-Strength Connection:

The GX12 Connector features a metal housing for a robust electrical connection and mechanical strength.

Various Pin Configurations:

Available in multiple pin configurations to meet the needs of various devices and applications.

Easy Installation:

Simple design supports quick connection and disconnection, enhancing installation efficiency.

Wide Application:

Widely used in automation, robotics, aerospace, and various other fields.

더 보기
속성
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Nickel Plated
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Rated Current
5A
Rated Voltage
125VAC
Connector Series
GX12
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Silver Plated
Insulating Materials
PBT
Cable Diameter
5mm~6.5mm
Shell Size
12
Insulation Color
Black
Key
A Code
설명

배송 가이드
배송
배송 기간
재고 상품은 3일 내에 발송될 예정입니다.
Elecbee는 매일 약 17:00에 발송합니다(일요일 제외).
발송 후 예상 배송 시간은 선택한 운송사에 따라 다릅니다.
DHL 익스프레스: 3-7 영업일
DHLeCommerce: 12-22 영업일
FedEx 국제 우선: 3-7 영업일
EMS: 10-15 영업일
등기 항공 우편: 15-30 영업일
배송비주문 배송비는 장바구니에서 확인할 수 있습니다.
배송 옵션주문 배송비는 장바구니에서 확인할 수 있습니다.
물류 추적주문 발송 후 이메일로 운송장 번호를 보내드리며, 「내 주문 추적」 기능으로 물류를 조회할 수 있습니다.
반품/보증반품반품/교환은 일반적으로 발송 후 30일 내에 완료해야 하며, 고객 서비스에 연락하여 반품 승인을 받으세요. 상품은 사용하지 않은 상태여야 하며 원래 포장을 유지해야 합니다. 배송비는 고객이 부담합니다.
보증모든 Elecbee 구매 상품은 30일 무조건 반품 정책과 1년 Elecbee 보증(제조 결함 대상)을 받습니다.
본 보증은 고객의 잘못된 조립, 설명서 미준수, 제품 수정, 부주의 또는 부적절한 사용으로 인한 결함 상품에는 적용되지 않습니다.
주문구매 방법Elecbee는 온라인 주문을 지원합니다.
장바구니에 추가 > 결제 > 주문 제출 > 결제 완료 > 배송
결제PayPal, 신용카드(Visa, MasterCard, 아메리칸 익스프레스), 은행 송금.
