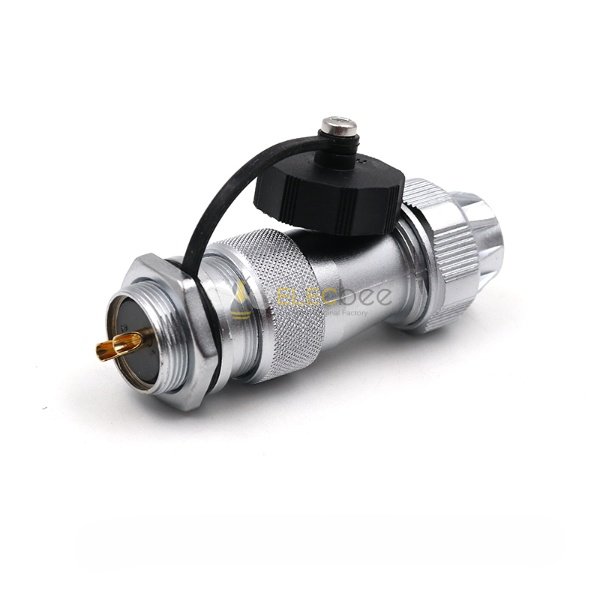

Elecbee 2pin TE+ZM Power Cable Wire Connector WF20 Male Plug and Female Jack Connector Aviation plug Socket

SKU: EB-WF20J2TE-WF20K2ZM
즐겨찾기
핵심 특징

Features:

  • Model Number: WF20
  • Shell Material: Zinc alloy with chrome plating
  • Coupling: Thread
  • Termination Type:  Solder
  • Insulator: High-temperature PPS
  • Temperature Range: -40°C~85°C
  • Contact material: Brass with gold plating
  • Hole Diameter: 20mm
  • Number of Contacts: 2/3/4/5/6/7/8/9/12/15Pin
  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
더 보기
속성
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
2 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
25A
Rated Voltage
500VAC
Connector Series
WF20
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
11AWG
Shell Size
20
Insulation Color
Black
