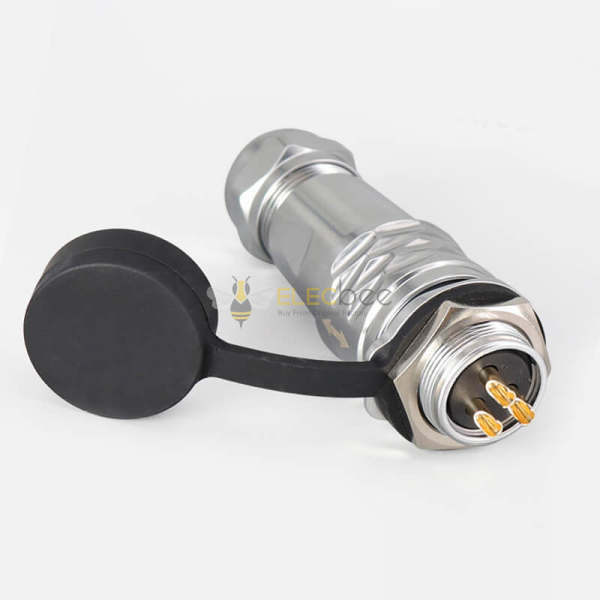

Elecbee Metal Aviation Industrial SF20-3 Pin Docking Camera Cable Male Plug Female Socket Back-Mount Waterproof Circular Push-Pull Quick

SKU: EB-037-0051
즐겨찾기
핵심 특징

Feature

  • Sloder,  Push-pull quick, Male plug, Female socket , Back mount, Waterproof, 3pin
  • WaterproofIP67
  • Low frequency
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application :

  • Applications: used in aviation, navigation, computers, communications, anti-theft devices, transportation, machinery and electronics, etc.



더 보기
속성
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
3 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
25A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
SF20
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
11AWG
Shell Size
20
Insulation Color
Black
Key
A Code
설명

Connection method:  Push-pull Self lock

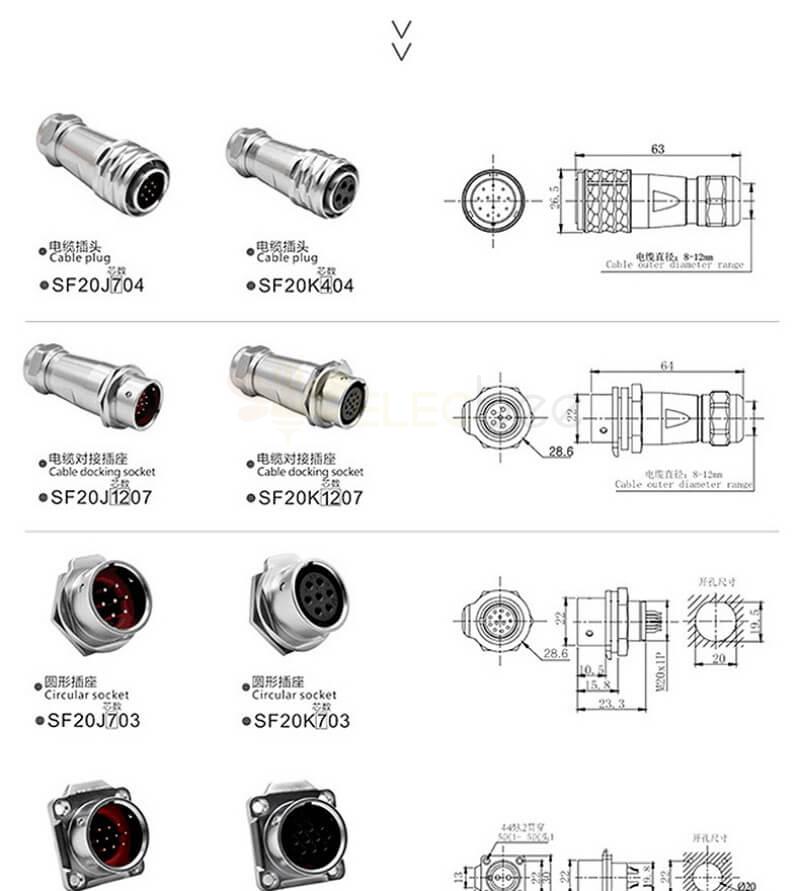

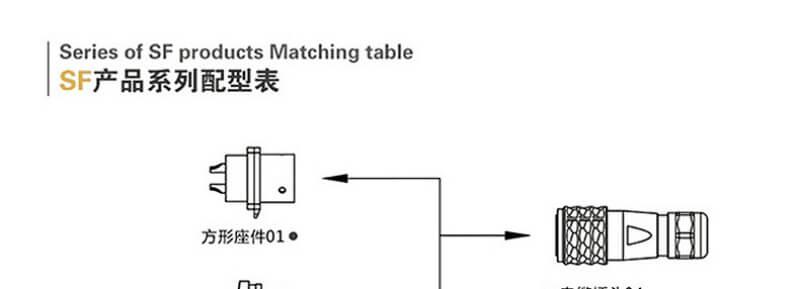

SF6   options: 2,3,4,5 pin

SF12   options:2,3,4,5,6,7,9 Pin

SF20    option:2,3,4,5,6,7,9,10,12 pin
