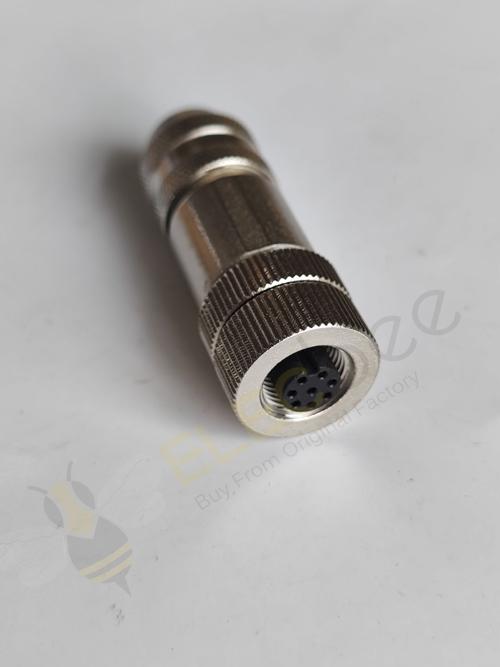

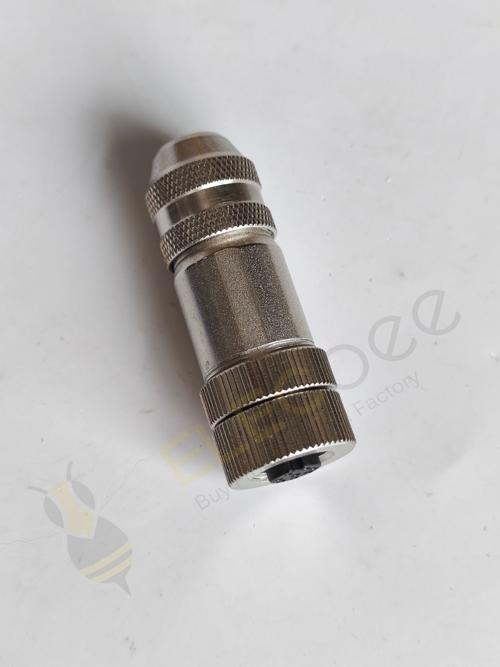

M12 connectors and M12 cable assemblies can be used for precise measurement and control, communication, transportation, intelligent robotics, agriculture and animal husbandry and their replacement power energy fields. A variety of pin numbers can be selected correctly for specific application requirements, such as 3-pin and 4-pin models for sensor and switching power supply applications; 4-pin, 6-pin and 8-pin models for Ethernet and PROFINET; DeviceNet and CANbus for general applications 4-pin and 5-pin M12 connectors; 12-pin models are generally used for various data signal applications.
The selection of sensor connectors should follow the following points:
1. Sensor model
To carry out a specific measurement work, the sensor connector of which principle should be considered first, which needs to be determined after analyzing various factors. Because, even for the measurement of the same physical quantity, there are also sensor connectors with various principles to choose from.
2. Sensor accuracy
Accuracy is an important performance index of sensor connectors, and it is an important link related to the measurement accuracy of the entire measurement system. The higher the accuracy of the sensor connector, the more expensive it is. Therefore, the accuracy of the sensor connector only needs to meet the accuracy requirements of the entire measurement system, and it is not necessary to choose too high.
3. Sensor linear range
The linear range of a sensor connector is the range where the output is proportional to the input. Theoretically, within this range, the sensitivity remains constant. The wider the linear range of the sensor's M12 connector, the larger its range, and a certain measurement accuracy can be guaranteed. When selecting a sensor connector, when the type of the sensor connector is determined, it first depends on whether its range meets the requirements.
4. Sensor transmission rate
The frequency response characteristic determines the frequency range to be measured, and the measurement conditions must be maintained without distortion within the allowable frequency range. In fact, the response of the sensor connector always has a certain delay, and it is hoped that the shorter the delay time, the better.
