5pcs 10 Pin Header Connector 180 Degree Dual Row 1.27PH SMT

5pcs 10 Pin Header Connector 180 Degree Dual Row 1.27PH SMT

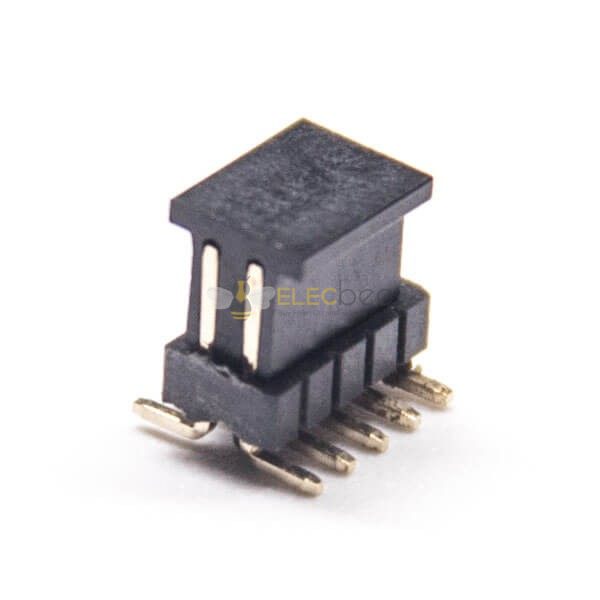

Name: 5pcs 10 Pin Header Connector 180 Degree Dual Row 1.27PH SMT
Brand: Elecbee
SKU: 5XEB-609-0081
Price: 1.69 USD
Availability: InStock

$1.69

SKU: 5XEB-609-0081

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Pin Header Connector,Male/Plug,Straight/180°,1.27mm,10Pin,Dual Row,SMT，Solder Type,Gold Plating，Black,H1.5mm,Square
Normally associated with ribbon cable connectors, or worked as recipients for jumpers
consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

5pcs 10 Pin Header Connector 180 Degree Dual Row 1.27PH SMT

5XEB-609-0081

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Solder Type
Installation characteristics

Surface Mount
direction

Straight
Number of Positions

10pin
Number of Rows

2
Continuous plating

Gold
Insulator Colour

black
Plastic High

1.5mm
Contact Shape

Circular
spacing

1.27mm

Description

Main Application

Electronic device
Home appliances
Electrical instruments
Automotive: Car navigation LCD panel and so on.
Lighting industry
The above applications are typical but not limited, these products are widely use in many fields

Electrical Characteristics

Current Rating: 1.5 Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Contact Material: Copper Alloy
Insulator Material: PA6T,UL 94V-0 Black

Mechanical characteristics

Durability (Gold finish)：300 mating cycles
Durability (Tin finish)：50 mating cycles
Insertion force：2N max per contact
Withdrawal Force：0.3N min per contact

Environmental and Processing

Operating Temperature: -40°C to +105°C
LCP Suitable For: IR Reflow, Wave, Manual solder
