IP67 Waterproof D-sub 9 Pin Contact Right Angle PCB Mount 20pcs

IP67 Waterproof D-sub 9 Pin Contact Right Angle PCB Mount 20pcs

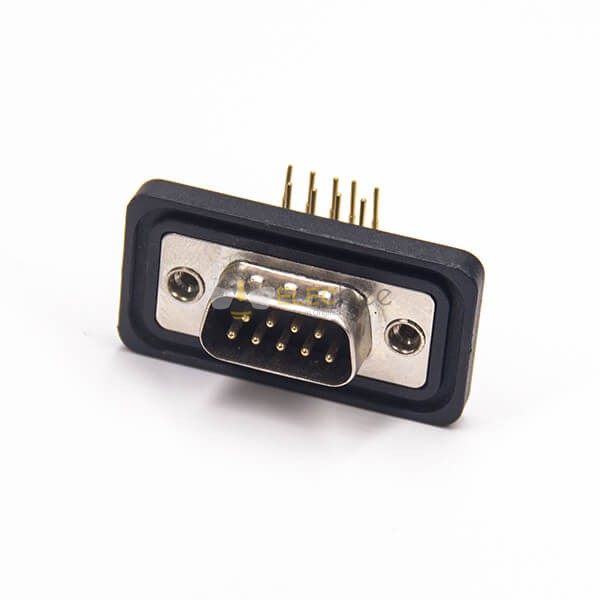

Name: IP67 Waterproof D-sub 9 Pin Contact Right Angle PCB Mount 20pcs
Brand: Elecbee
SKU: 20XEB-603-0070
Price: 98.82 USD
Availability: InStock

$98.82

SKU: 20XEB-603-0070

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Waterproof D-sub,Plug,9 Pin,2 Rows,Single Port,Right angle Type,Machined Pin,Gold plated,Vertical PCB Mount,IP67,Without Filtered.
Interfacial seal to ensure function even when immersed;
Better against mechanical impacts during installation;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Applications:

industrial machinery
medical equipment
test and measurement equipment

communications

Contact Sales

IP67 Waterproof D-sub 9 Pin Contact Right Angle PCB Mount 20pcs

20XEB-603-0070

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Solder Type
direction

Right Angle
Connector Type

Plug
Continuous plating

machined pin
filter

No
Number of Positions

9pin
Number of Rows

2
Port number

Single
Installation characteristics

Shell (M3.0)
waterproof level

IP67
Continuous plating

Gold

Description

Electrical Characteristics

Contact resistance:10 mOhm
Current rating signal:7,5 A
Dielectric with standing voltage signal:1000 V
Working voltage signal:125 V
Test voltage:1000V

Mechanical Characteristics

Extraction force:30N
Insertion force:30N

Environmental Characteristics

Operating Temperature：-25°C~ +125°C

Material:

Part	Material	Finish
Body	steel	Tin
Center Contact Pin	Copper alloy	hard acid gold over nickel
Insulator	Polyester GF, UL 94V-0	------
