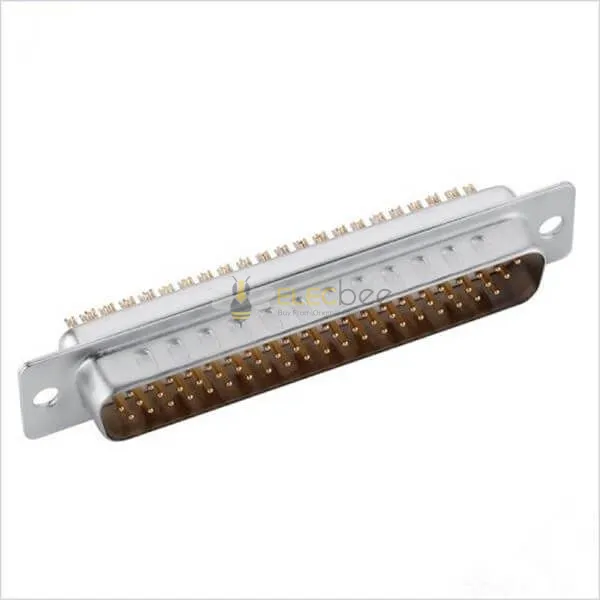

78 Pin D Sub High Density Male Machined Contacts Connector solder type 20pcs

Name: 78 Pin D Sub High Density Male Machined Contacts Connector solder type 20pcs
Brand: Elecbee
SKU: 20XEB-602-0031
Price: 90.00 USD
Availability: InStock
Rating: 96 / 20 (20 reviews)

$90.00

SKU: 20XEB-602-0031

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

78 Pin D Sub High Density Male Machined Contacts Connector solder type 20pcs

20XEB-602-0031

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
Terminal type

Solder Cup
Installation characteristics

Shell (Unthreaded)
direction

Straight
Connector Type

Plug
Number of Positions

78pin
Continuous plating

machined pin
filter

No
Number of Rows

4
Port number

Single
waterproof level

Not Waterproof
Continuous plating

Gold

Description

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black/White
