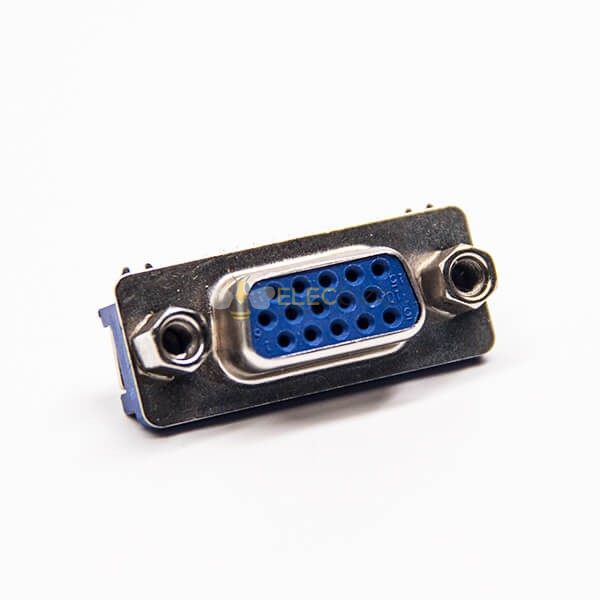

D SUB 15 Pin Female Right Angled Staking Type Through Hole for PCB Mount 20pcs

D SUB 15 Pin Female Right Angled Staking Type Through Hole for PCB Mount 20pcs

Name: D SUB 15 Pin Female Right Angled Staking Type Through Hole for PCB Mount 20pcs
Brand: Elecbee
SKU: 20XEB-602-0028
Price: 28.44 USD
Availability: InStock
Rating: 96 / 20 (20 reviews)

$28.44

SKU: 20XEB-602-0028

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

D SUB 15 Pin Female Right Angled Staking Type Through Hole for PCB Mount 20pcs

20XEB-602-0028

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Through Hole
Installation characteristics

Front Open Screwlock(4-40)
direction

Right Angle
Connector Type

Socket
Number of Positions

15 pin
Continuous plating

stamped pin
filter

No
Number of Rows

3
Port number

Single
waterproof level

Not Waterproof
Continuous plating

Tin

Description

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black/White
