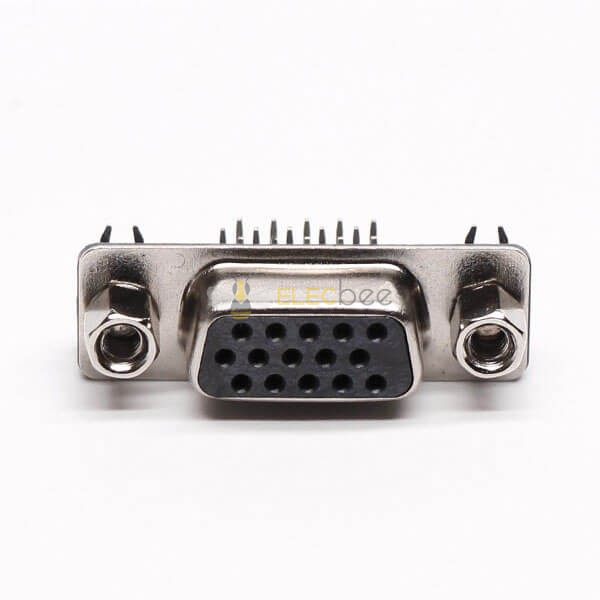

DB 15 90° High Density Staking Type Though Hole for Pcb Mount 20pcs

DB 15 90° High Density Staking Type Though Hole for Pcb Mount 20pcs

Name: DB 15 90° High Density Staking Type Though Hole for Pcb Mount 20pcs
Brand: Elecbee
SKU: 20XEB-602-0009
Price: 32.40 USD
Availability: InStock
Rating: 97 / 20 (20 reviews)

$32.40

SKU: 20XEB-602-0009

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

DB 15 90° High Density Staking Type Though Hole for Pcb Mount 20pcs

20XEB-602-0009

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Right Angle
Continuous plating

stamped pin
filter

No
Number of Positions

15 pin
Connector Type

Socket
Number of Rows

3
Port number

Single
Installation characteristics

Front Open Screwlock(4-40)
waterproof level

Not Waterproof
Continuous plating

Tin
Terminal type

Through Hole

Description

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black
