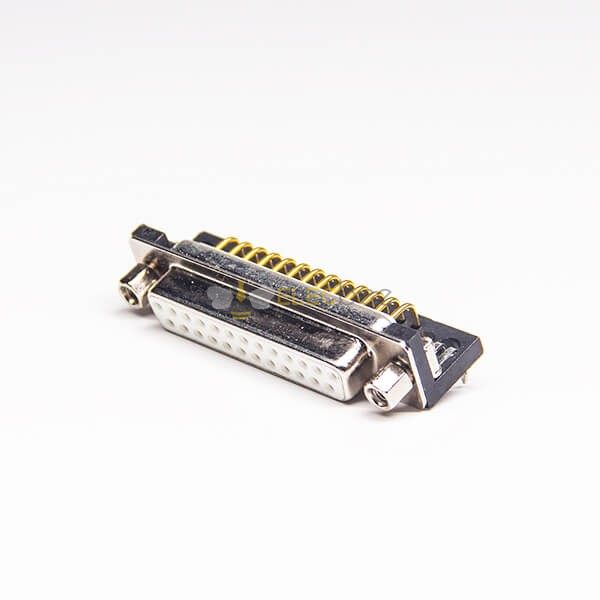

D SUB Right Angled 25 Pin Female DIP Type Staking Type for PCB Mount 20pcs

D SUB Right Angled 25 Pin Female DIP Type Staking Type for PCB Mount 20pcs

Name: D SUB Right Angled 25 Pin Female DIP Type Staking Type for PCB Mount 20pcs
Brand: Elecbee
SKU: 20XEB-601-0030
Price: 97.56 USD
Availability: InStock

$97,56

SKU: 20XEB-601-0030

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-sub Connector,Machined,Nickel Plating,Fmale,25 Pin,Right Angled/90°,White,Staking Type,Through Hole,PCB Mount
Precision turned contacts;
D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

D SUB Right Angled 25 Pin Female DIP Type Staking Type for PCB Mount 20pcs

20XEB-601-0030

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Right Angle
Continuous plating

machined pin
filter

No
Number of Positions

25 pin
Connector Type

Socket
Number of Rows

2
Port number

Single
Installation characteristics

Front Open Screwlock(4-40)
waterproof level

Not Waterproof
Continuous plating

Gold
Terminal type

Through Hole

Description

Applications:

Business equipment
Electronic office systems
Data communications
Technology equipment
Mobile communications
Consumer electronics

Electrical Characteristics

Voltage Rating :300 V AC/rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance：5000MΩ
Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

DF: -67°F (-55°C) to + 257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
