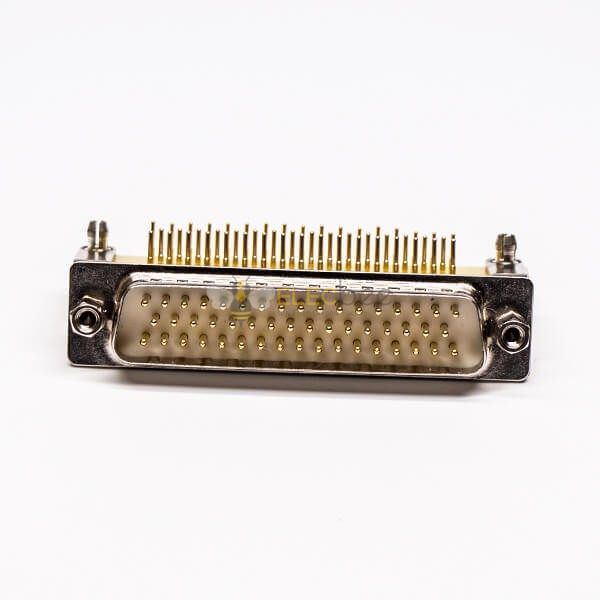

50 Pin D sub Connector Male Right Angled staking Type Through Hole 20pcs
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
Terminal type
Through Hole
-
Installation characteristics
Front Open Screwlock(4-40)
-
direction
Right Angle
-
Connector Type
Plug
-
Number of Positions
50 pin
-
Continuous plating
machined pin
-
filter
No
-
Number of Rows
3
-
Port number
Single
-
waterproof level
Not Waterproof
-
Continuous plating
Gold
- Description
Electrical Characteristics
- Voltage Rating :300 V AC/rms 50Hz
- Withstanding Voltage :1000V AC/ rms 50Hz for one minute
- Insulation Resistance：5000MΩ
- Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max
Environmental Characteristics
- Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),
DF: -67°F (-55°C) to + 257°F (125°C)
Material:
| Part | Material | Finish |
| Body | Steel | ------- |
| Center Contact Pin | Brass | Gold |
| Insulator | Glass-filled thermoplastic | ------ |
