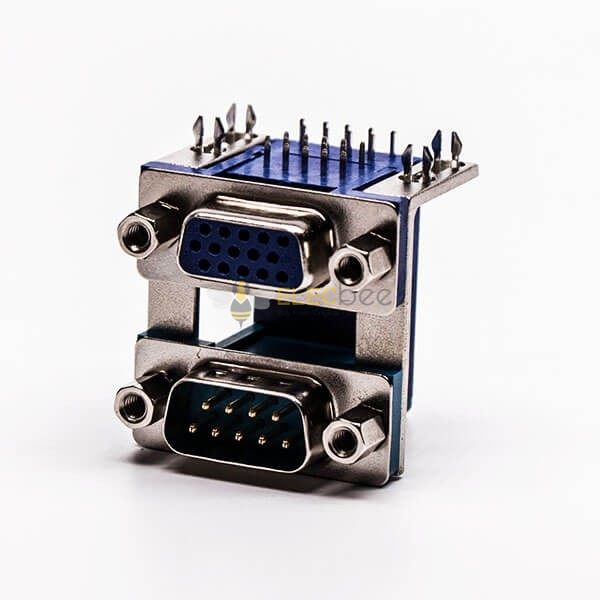

Stacked D sub Connector Jack and Plug 90 Degree Staking Type

Stacked D sub Connector Jack and Plug 90 Degree Staking Type

Name: Stacked D sub Connector Jack and Plug 90 Degree Staking Type
Brand: Elecbee
SKU: EB-602-0017
Price: 4.80 USD
Availability: InStock

$4.80

SKU: EB-602-0017

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$4.56

10-19 PCS

$4.32

20-99 PCS

$3.84

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-sub Connector,Right Angled/90°,stacked,staking type,9.89,Pcb Mount,Though Hole
Metal shell provides EMI/RFI shielding;
High density design maximizes board space;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

Stacked D sub Connector Jack and Plug 90 Degree Staking Type

EB-602-0017

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Installation characteristics

Through Hole

Description

Applications:

data transmission
Consumer Electronics
telecommunications
measurement
regulation and control devices
Military Equipment

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black
