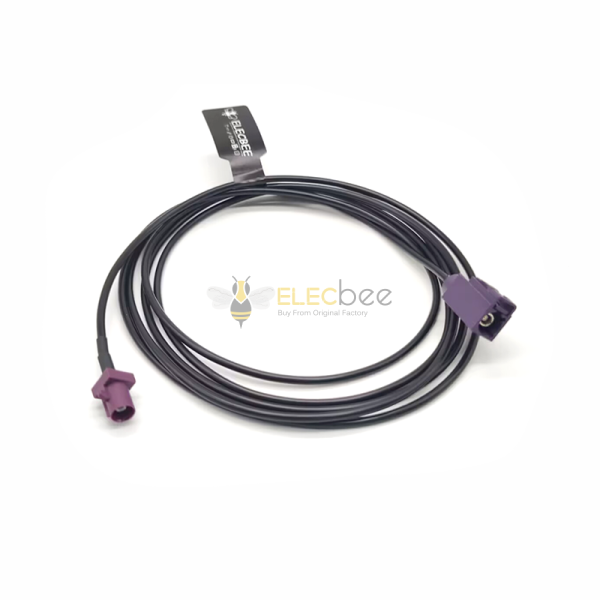

Antenna Connector Fakra D 4G LTE 3G UMTS GSM Car Telematics Adapter Extension Cable 2m
- Fakra Cable,Fakra D Connector,Male to Female,Straight,Cable
- 14 different mechanical and color codes
- Plastic housing with locking feature and audible clicking noise
- Minimum of 100 mating cycles
- Frequency range of DC - 3 GHz
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Automotive
- Global Positioning Satellite
- Satellite Radio
- Bluetooth
- Remote Vehicle Diagnostics
- Infotainment Systems
- Wireless communication
- Wireless LAN
- Specification
-
Product Attribute
Attribute Value
Search
-
Connector A Gender
Male
-
Connector A Direction
Straight
-
Connector B Gender
Female
-
Connector B Direction
Straight
-
Connector A Type
Fakra
-
Connector B Type
Fakra
- Description
Electrical Specifications:
- Frequency Range:0-6 GHz
- Performance Spec:SAE-USCAR-17, 18
- Dielectric Withstanding Voltage (Sea Level):> 1000 VRMS
- VSWR DC- 200MHz:1.2 max
- 200-500MHz:1.35 max
- 500MHz-2GHz:1.4 max
- 2-3GHz:1.5 max
- 3-6GHz:1.6 max
- Insulation Resistance:1000 MΩ min
- Contact Resistance
- Center Contact:<20 mΩ
- Outer Contact:< 10 mΩ
- Insertion Loss
- Spec Requirement:< 0.3 dB max from DC-3 GHz
- DC-200MHz:< 0.15 dB
- 200-500MHz:< 0.25dB
- 500MHz-3GHz:< 0.3 dB
- 3-6GHz:< .45dB
Mechanical properties:
- Mating Durability:100 mating cycles min
- Plastic Housing Engagement Force
- Engagement :20 N
- Disengagement:25 N
- Cable Retention Force
- Cable Group 1:110 N
- Cable Group 4:180 N
- Coding;12 mechanical and color coding
