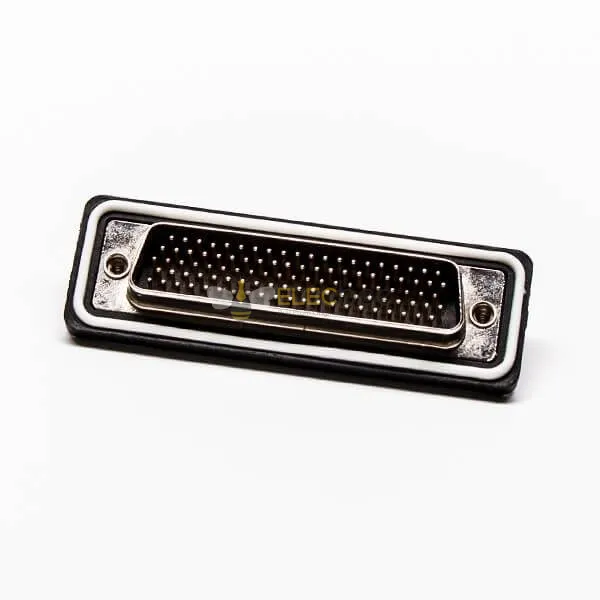

D-sub 104 Pin Male Straight Waterproof Connector for Cable Solder Type

D-sub 104 Pin Male Straight Waterproof Connector for Cable Solder Type

Name: D-sub 104 Pin Male Straight Waterproof Connector for Cable Solder Type
Brand: Elecbee
SKU: EB-603-0001
Price: 68.88 USD
Availability: InStock

$37,50

SKU: EB-603-0001

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Orders under $800 , tax included.（U.S. only)

Bulk Purchase, Auto Savings:

$65.44

10-19 PCS

$61.99

20-99 PCS

$55.10

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-sub,Waterproof,Male/Plug,Straight/180°,Machined,104 Pin,Cable Connector,Solder Type ;
Interfacial seal to ensure function even when immersed;
Better against mechanical impacts during installation;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Applications:

industrial machinery
medical equipment
test and measurement equipment

communications

Contact Sales

D-sub 104 Pin Male Straight Waterproof Connector for Cable Solder Type

EB-603-0001

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
direction

Straight
Terminal type

Solder Cup
Connector Type

Plug
Continuous plating

machined pin
filter

No
Port number

Single
Installation characteristics

Shell (M3.0)
Continuous plating

Gold
Number of Positions

104pin
Number of Rows

5

Description

Electrical Characteristics

Contact resistance:10 mOhm
Current rating signal:7,5 A
Dielectric with standing voltage signal:1000 V
Working voltage signal:125 V
Test voltage:1000V

Mechanical Characteristics

Extraction force:30N
Insertion force:30N

Environmental Characteristics

Operating Temperature：-25°C~ +125°C

Material:

Part	Material	Finish
Body	steel	Tin
Center Contact Pin	Copper alloy	hard acid gold over nickel
Insulator	Polyester GF, UL 94V-0	------
