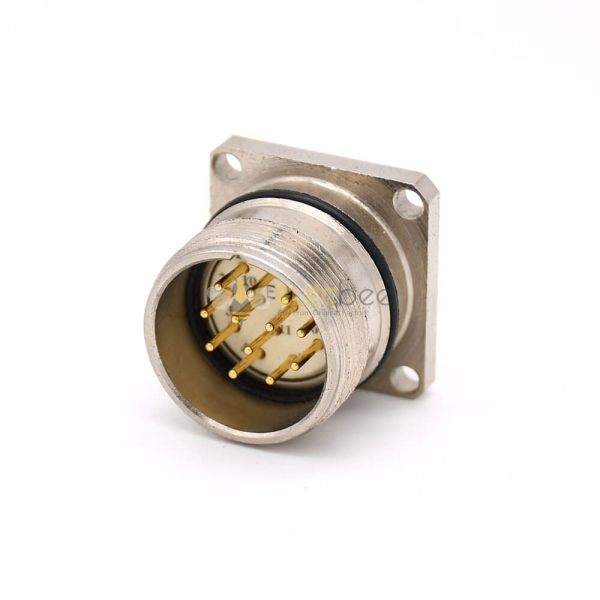

Elecbee 12pin connector M623 Straight Waterproof Male Cable 4 Hole Flange Receptacles Shield

SKU: EB-400-4033
Favorites
Key Features

Features:

  • M623,12 Pin,Male,Waterproot,Straight,Panel Mount,Solder Type,4 Hole Flange,Shieldxa0xa0
  • Male/Female, Straight/right angle
  • wire/pcb/cable,
  • Termination: Soldering/crimping, Front Mount "
  • thread locking mechanism, 23mm metric size, xa0central lock
  • Easy quick connect and disconnect coupling
  • High Quality with 30 days 100% Money back.
  • From the OEM Original Factory, same quality with much better price.

Appliance:

  • Applications
  • ● xa0Automation
  • ● Transport
  • ● Power generation
  • ● Shipbuilding
  • ● Medicine
Show More
Attribute
Value
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Crimp
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
12 Pin
Operating Temperature
-20℃~+85℃
Ingress Protection
IP67(mated)
Rated Current
8A
Rated Voltage
200V
Connector Series
M23
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
White
Description
Packing Delivery:


Shopping Guide
Shipping
Delivery Period
For in-stock parts, orders are estimated to ship out in 3 days.
Elecbee ships orders once a day at about 5pm except Sunday.
Once shipped, estimated delivery time depends on the below carriers you chose.
DHL Express: 3-7 business days
DHLeCommerce: 12-22 business days
FedEx International Priority: 3-7 business days
EMS: 10-15 business days
Registered Air Mail: 15-30 business days
Shipping RatesShipping rates for your order can be found in the shopping cart.
Shipping OptionsShipping rates for your order can be found in the shopping cart.
Shipping TrackingWe will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature.
Returning/WarrantyReturningReturns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping
WarrantyAll Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects.
This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation
OrderingHow to BuyElecbee accepts online orders.
Add to cart > Check out > Submit order > Complete payment > Delivery
PaymentPayPal, Credit Card includes Visa, Master, American Express, Bank transfer.

Recommended For You

Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
17%
4 stars
17%
5 stars
67%
A****n
The product is as described.
review-image
R****a
Perfect fit for our industrial automation setup. The 12-pin solder-type connection is solid and the IP67 rating means no issues with moisture in the车间.
p****s
Good quality M623 connector with strong metal flange. Took a bit to solder all 12 pins, but the shielding and thread locking make it worth it for our transport application.
B****O
Used in a marine environment—so far completely waterproof as claimed. The 4-hole flange makes panel mounting secure even with vibration on board.
C****s
Works well for our medical device, but wish it came with a crimp option. Soldering takes time, though the central lock and 23mm metric size ensure reliability.
W****n
Exactly what we needed for power generation sensors. The -40°C to +125°C range handles outdoor fluctuations perfectly. Shielded and sturdy.
