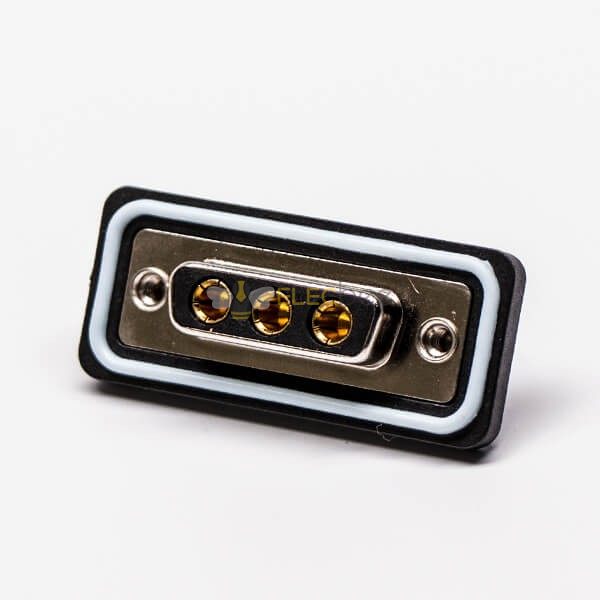

D sub 3w3 Waterproof Straight Female Machined Solder Type

D sub 3w3 Waterproof Straight Female Machined Solder Type

Name: D sub 3w3 Waterproof Straight Female Machined Solder Type
Brand: Elecbee
SKU: EB-603-0014
Price: 12.88 USD
Availability: InStock

$12.88

SKU: EB-603-0014

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$12.24

10-19 PCS

$11.59

20-99 PCS

$10.30

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-sub,Waterproof,Female/Jack,Straight/180°,Machined,3w3,Cable Connector,Solder Type,IP67;
Interfacial seal to ensure function even when immersed;
Better against mechanical impacts during installation;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Applications:

industrial machinery
medical equipment
test and measurement equipment

communications

Contact Sales

D sub 3w3 Waterproof Straight Female Machined Solder Type

EB-603-0014

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable Type
Direction

Straight
Terminal type

Solder Cup
Conductor Type

machined pin
filter

No
Number of Positions

3W3
Connector Model

Socket
Number of ports

Single
Installation characteristics

Shell (M3.0)
Protect Level

IP67
Contact Plating

Gold
Number of Rows

1

Description

Electrical Characteristics

Contact resistance:10 mOhm
Current rating signal:7,5 A
Dielectric with standing voltage signal:1000 V
Working voltage signal:125 V
Test voltage:1000V

Mechanical Characteristics

Extraction force:30N
Insertion force:30N

Environmental Characteristics

Operating Temperature：-25°C~ +125°C

Material:

Part	Material	Finish
Body	steel	Tin
Center Contact Pin	Copper alloy	hard acid gold over nickel
Insulator	Polyester GF, UL 94V-0	------
