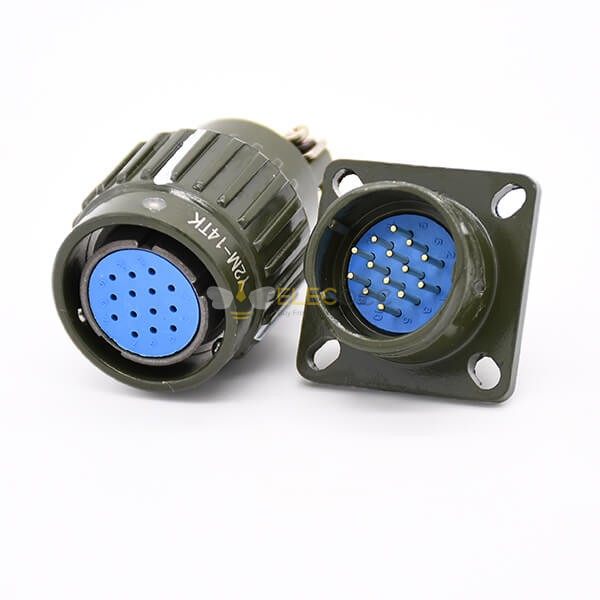

Y2M-14TK 21mm Panel Diameter 14 Pins Female Twist Circular Connector 20pcs
Features:
- Y21M Connector,Plug,Bayonet Coupling,14 pin,Female Contact,Solder Cable Plug
- Small Volume
- Light Weight
- Convenient Application
- High Durability of Plugging and Unplugging
- Good Sealing Performance
- Resistance Against Corrosion
- High Conductivity and High Dielectric Strength
- Specification
-
Product Attribute
Attribute Value
Search
-
Terminal type
Solder Type
-
Gender
Female
-
Body Material
Aluminum Alloy
-
Installation characteristics
4 Hole Flange
-
direction
Straight
-
Connector Type
Plug
-
Installation method
Panel Mount / Cable
-
Number of Positions
14 Pin
-
Docking method
Bayonet
-
Coating
Olive Drab Cadmium
- Description
Electrical Characteristics
- Relative humility: 92-98% at 40±2℃
- Insulation resistance: ≥1000MΩ
- Contact Resistance: 1MΩ/3MΩ/5MΩ
- Frequency Range: 10-2300Hz,180m/s2
- Voltage: 250V
- Current: 5A/10A/25A
Mechanical Characteristics
- Mating Type: Bayonet coupling
- Termination : Solder
- Durability(mating): 500 cycles
Environmental Characteristics
- Temprature Range: -40°C ~ +85°C
- Atomosphere: 100KPa-100Pa
Material:
- Shell: Aluminum Alloy
- Contact: Copper,Gold Plated
