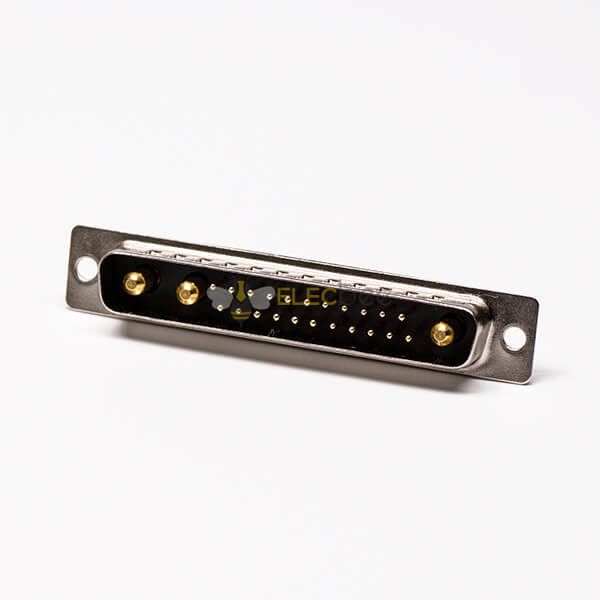

D SUB Connector Male 25W3 Solder Type 180° High Current for Cable with Staking

D SUB Connector Male 25W3 Solder Type 180° High Current for Cable with Staking

Name: D SUB Connector Male 25W3 Solder Type 180° High Current for Cable with Staking
Brand: Elecbee
SKU: EB-604-0027
Price: 14.58 USD
Availability: InStock

$2.01

SKU: EB-604-0027

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$13.85

10-19 PCS

$13.12

20-99 PCS

$11.66

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Current

- +

Features:

Combo D-sub, Straight/180°,Power D-sub,Male/Plug,Cable Connector,Solder Type, 25W3,Staking type;
Space saving,Cost-effective;
Large variety of mounting options,RoHS Compliant;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

D SUB Connector Male 25W3 Solder Type 180° High Current for Cable with Staking

EB-604-0027

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable Type
Terminal type

Solder Cup
Installation characteristics

Shell (Unthreaded)
Direction

Straight
Connector Model

Plug
Number of Positions

25W3
Conductor Type

machined pin
filter

No
Number of Rows

2
Number of ports

Single
Protect Level

Not Waterproof
Contact Plating

Gold

Description

Applications:

medical electronics
wireless outdoor telecom systems
industrial automation
oil exploration
printers and displays
diagnostic systems

Electrical Characteristics

Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
Frequency range: 0 -1 GHz
VSWR: 1.4 (+0.04/GHz)
Characteristic Impedance:50 Ohms
Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
Contact Resistance ≤5 milliohms

Mechanical Characteristics

Mechanical operations ：up to 500

Environmental Characteristics

Operating Temperature：67°F (-55°C) to 311°F (+155°C)
with peaks up to 356°F (180°C)

Material:

Part	Material	Finish
Body	Steel with tin	-------
Center Contact Pin	Female：bronze Male：brass	Gold
Insulator	High temperature black thermoplastic	------
