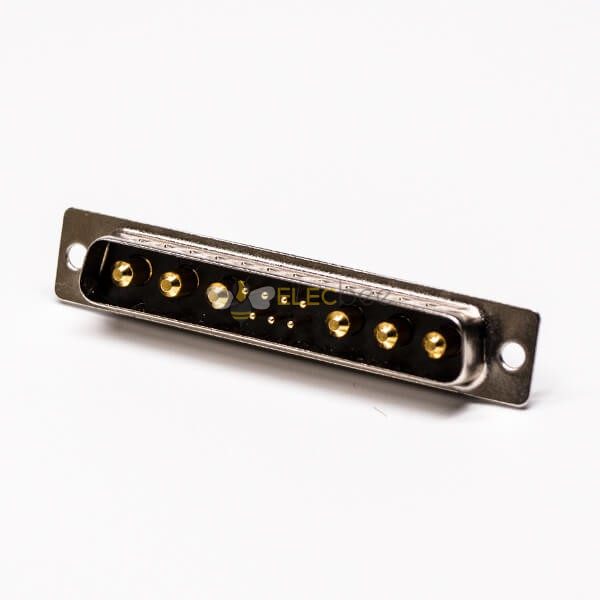

D SUB Power Connector 13W6 Solder Type Male Straight for Cable Staking Type

D SUB Power Connector 13W6 Solder Type Male Straight for Cable Staking Type

Name: D SUB Power Connector 13W6 Solder Type Male Straight for Cable Staking Type
Brand: Elecbee
SKU: EB-604-0029
Price: 15.00 USD
Availability: InStock
Rating: 97 / 20 (20 reviews)

$15.00

SKU: EB-604-0029

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$14.25

10-19 PCS

$12.83

20-99 PCS

$10.26

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Current

- +

Contact Sales

D SUB Power Connector 13W6 Solder Type Male Straight for Cable Staking Type

EB-604-0029

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
Terminal type

Through Hole
Installation characteristics

Shell (Unthreaded)
direction

Straight
Connector Type

Plug
Number of Positions

13W6
Continuous plating

machined pin
filter

No
Number of Rows

2
Port number

Single
waterproof level

Not Waterproof
Continuous plating

Gold

Description

Electrical Characteristics

Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
Frequency range: 0 -1 GHz
VSWR: 1.4 (+0.04/GHz)
Characteristic Impedance:50 Ohms
Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
Contact Resistance ≤5 milliohms

Mechanical Characteristics

Mechanical operations ：up to 500

Environmental Characteristics

Operating Temperature：67°F (-55°C) to 311°F (+155°C)
with peaks up to 356°F (180°C)

Material:

Part	Material	Finish
Body	Steel with tin	-------
Center Contact Pin	Female：bronze Male：brass	Gold
Insulator	High temperature black thermoplastic	------
