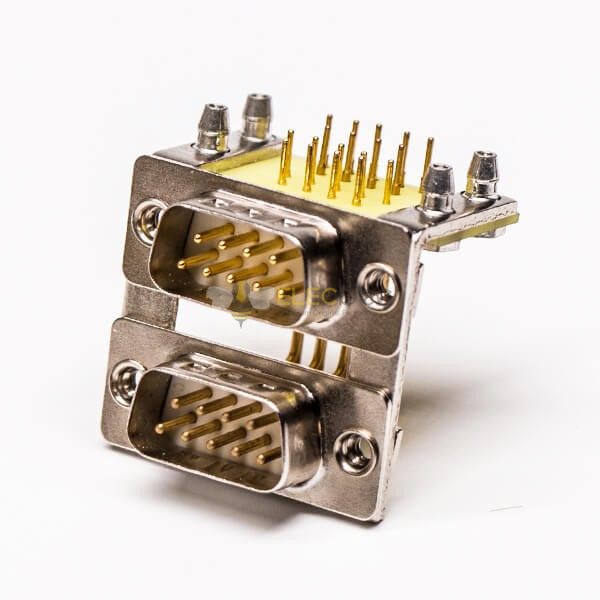

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

Name: D SUB Connector Staking Male 9 Pin Right Angled through Hole Staking Type for PCB Mount
Brand: Elecbee
SKU: EB-601-0013
Price: 12.88 USD
Availability: InStock

$2,19

SKU: EB-601-0013

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$12.24

10-19 PCS

$11.59

20-99 PCS

$10.30

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-sub Connector,Right Angled/90°,Male/Plug,Stacked,Staking,Machined Pin,type,19.05,PCB Mount,through Hole;
Precision turned contacts;
D-sub tinned and dimpled shell options – for enhanced electrical continuity and effective EMI/RFI shielding;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

D SUB Connector Stacked Male 9 Pin Right Angled through Hole Staking Type for PCB Mount

EB-601-0013

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Panel Mount
Direction

Right Angle
Connector Model

Plug
Conductor Type

machined pin
filter

No
Number of Positions

9 Pin
Number of Rows

2
Number of ports

Dual
Installation characteristics

Shell (M3.0)
Protect Level

Not Waterproof
Contact Plating

Gold
Terminal type

Through Hole

Description

Applications:

Business equipment
Electronic office systems
Data communications
Technology equipment
Mobile communications
Consumer electronics

Electrical Characteristics

Voltage Rating :300 V AC/rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance：5000MΩ
Contact Resistance：D: 8.5mΩ max. DF: 5mΩ max

Environmental Characteristics

Operating Temperature:D: -67°F (-55°C) to +185°F (85°C),

DF: -67°F (-55°C) to + 257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
