High Density D sub 62 Pin Male Straight Staking type Through Hole for PCB Mount

High Density D sub 62 Pin Male Straight Staking type Through Hole for PCB Mount

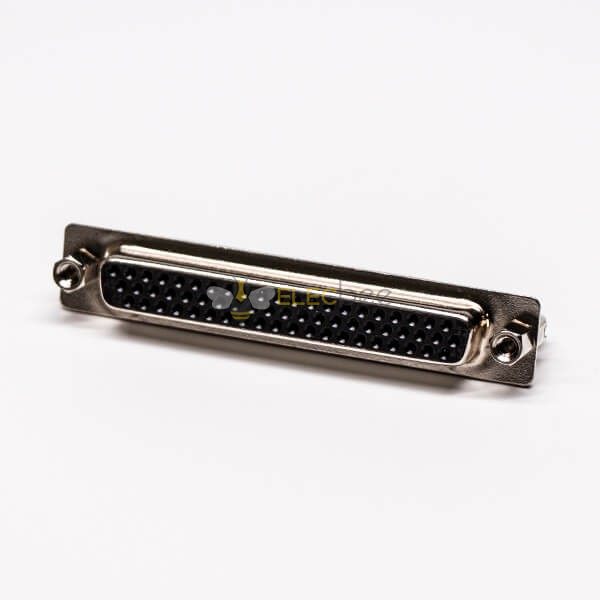

Name: High Density D sub 62 Pin Male Straight Staking type Through Hole for PCB Mount
Brand: Elecbee
SKU: EB-602-0024
Price: 14.36 USD
Availability: InStock
Rating: 97 / 20 (20 reviews)

$14.36

SKU: EB-602-0024

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$13.64

10-19 PCS

$12.28

20-99 PCS

$9.82

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

High Density D sub 62 Pin Male Straight Staking type Through Hole for PCB Mount

EB-602-0024

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Straight
Connector Type

Plug
Continuous plating

machined pin
filter

No
Number of Positions

62 pin
Number of Rows

3
Installation characteristics

Front Close Screwlock(4-40)
waterproof level

Not Waterproof
Continuous plating

Gold
Terminal type

Through Hole
Port number

8

Description

Electrical Characteristics

Contact resistance :10 mOhm
Current rating signal:3 A
Working voltage:60 V
Dielectric with standing voltage signal:1000 V
Insulation resistance: 5000mΩ min

Mechanical Characteristics

Extraction force:<50 N
Insertion force：<50 N
Mating cycles ：50

Environmental Characteristics

Operating Temperature：-55°C~ + 105°C

Material:

Part	Material	Finish
Body	SPCC steel	Tin
Center Contact Pin	Copper alloy	------
Insulator	Glass Filled Thermoplastic (UL94V-0)	Black
