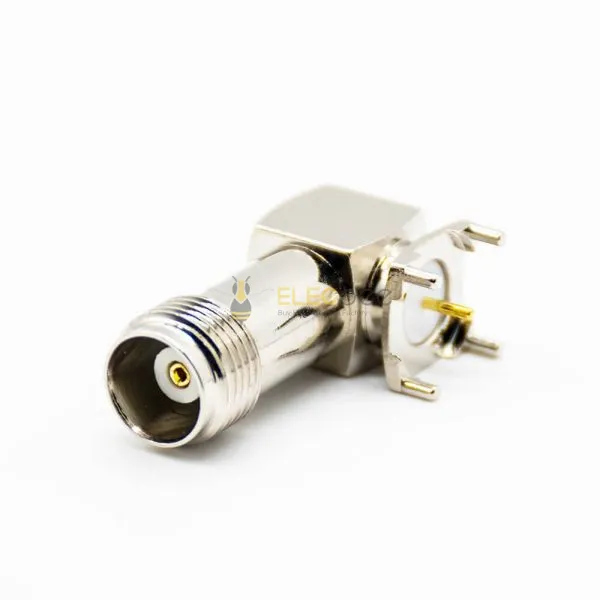

90 Degree TNC Connector Female PCB Mount Through Hole Threaded Custom
Features:
- TNC，female，right angle，standard，50Ω，pcb mount， through hole， zinc alloy，nickel plating，Custom
- Thread Version of BNC used in Vibration-Intense application with high durability;
- Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50 ohm impedance;
- High Quality with 30 days 100% Money back， made according to MIL-C-39012 standard;;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Zinc Alloy
-
Installation method
PCB Mount
-
Gender
Female
-
direction
Right Angle
-
Polarity
Standard
-
Function
Other
-
Coating
Nickel Plating
-
Installation characteristics
None
-
Impedance
50 Ω
-
Terminal type
Through Hole
-
Outer conductor connection
Without
- Description
Main Application of TNC Connectors:
- Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS, Wireless Base Station, Microwave Comonents, Radar, Networks,Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~11 GHz for 50 ohm
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance ≦ 3.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧5 × 10 ³ mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: 7/16-28 thread
- Contact Retention: 6 lbs min.
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics: -65oC~+145oC
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Method 204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Nickel (Ni) |
| Center Contact Pin | Berylium Copper | Gold |
| insulator | TEFLON | None |
