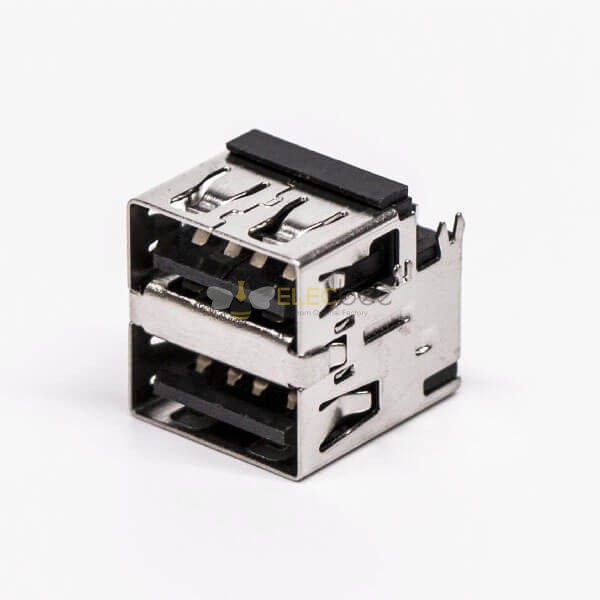

USB Right Angle Connectors Female DIP Dual Port
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
Terminal type
Solder Type
-
Installation characteristics
Through Hole
-
Gender
Female
-
direction
Right Angle
-
Connector Type
Type A
-
Number of Positions
4 pin
-
Port number
Dual
-
waterproof level
Not Waterproof
-
Standard
USB 2.0
- Description
Electrical Characteristics
- voltage Rating: 30V AC (rms)
- Current Rating: 1.0A MAX
- Contact Resistange: 30 milliohms max
- Insulation Resistange: 1000 megohms min
- Dielectric Withstanding Voltage: 500 V DC/1min
Mechanical Characteristics
- Mating force: 3.57 kgf max
- UNmating force: 1.0 kgf min
Environmental Characteristics
- Operating Temperature：-40°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | ------ |
| Shell | Copper Alloy or Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
- Drawings
