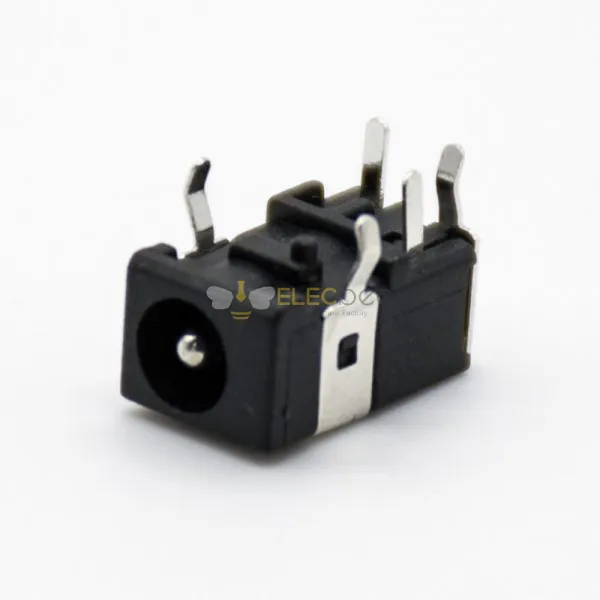

DC Power Supply Connector Male Jack Through Hole Solder Lug 4.5*1.65 Right Angle Unshiled
- Specification
-
Product Attribute
Attribute Value
Search
-
Gender
Male
-
direction
Right Angle
-
Shield
Unshielded
-
Connector Type
Socket
-
Terminal type
PCB Soldering
-
Installation method
Through Hole
- Description
Electrical Characteristics:
- Voltage Rating: 48V AC/DC
- Current Rating: 5A (current carry only)
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Withstanding: 500 VAC max.
Mechanical Characteristics:
- Installation angle : Straight/ Right Angle
- Connector Mounting Type : Panel Mount/PCB Mount
Environmental Characteristics:
- Ambient temperature: -40°C to 65°C (-40°F to 149°F)
Material:
| art | Material | Finish |
| Pin/ Terminal | Brass | Nickel |
| Shunt Terminal | Brass | Silver (Over Nickel) |
| Tip Spring | Copper Alloy | Silver (Over Nickel) |
| Ground Spring | Stainless Steel | ------ |
| Shield | Brass | Nickel |
| Body | Brass | Nickel |
| Contacts | Brass | Nickel |
| Insulator | Thermoplastic | ------ |
| Hex Nut | Die Cast | Nickel |
