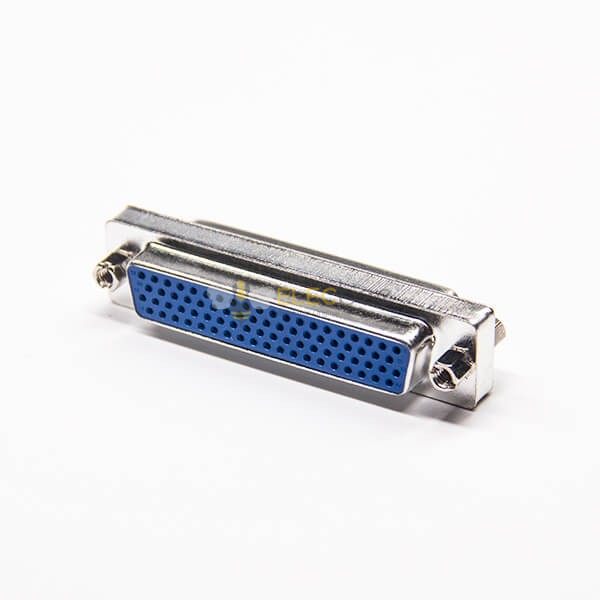

78Pin D Sub Connector Female To Female High Density D-Sub Metal Straight

78Pin D Sub Connector Female To Female High Density D-Sub Metal Straight

Name: 78Pin D Sub Connector Female To Female High Density D-Sub Metal Straight
Brand: Elecbee
SKU: EB-640-0052
Price: 28.63 USD
Availability: InStock

$28.63

SKU: EB-640-0052

Copy to clipboard

86 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$27.20

10-19 PCS

$25.77

20-99 PCS

$22.90

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-Sub Adapter&Gender Changers,High Density D-Sub,Female,78Pin,High Density D-Sub,Female,78Pin,Straight，Metal
Ideal where space is limited and provide shielding against RFI/EMI interference
Durability of 500 mating cycles
Inserts are flame-retardant thermoplastic;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

78Pin D Sub Connector Female To Female High Density D-Sub Metal Straight

EB-640-0052

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
direction

Straight
Connector A Gender

Female
Connector B Gender

Female
Connector A Type

D-sub
Connector B Type

D-sub
Connector A Pin Count

78pin
Connector B pin count

78pin
Connector Type

High Density D-Sub

Description

Applications:

Commercial equipment
Electronic data processing equipment
data communication
Technology equipment
Communication converter
Consumer electronics products
Serial communication interface

Electrical Characteristics

Voltage Rating :250V AC/ rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.

Mechanical Characteristics

Mechanical life: 500 times

Environmental Characteristics

Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:

Part	Material	Finish
Body	Steel with tin	-------
Center Contact Pin	Brass	Gold
Insulator	High temperature black thermoplastic	------
