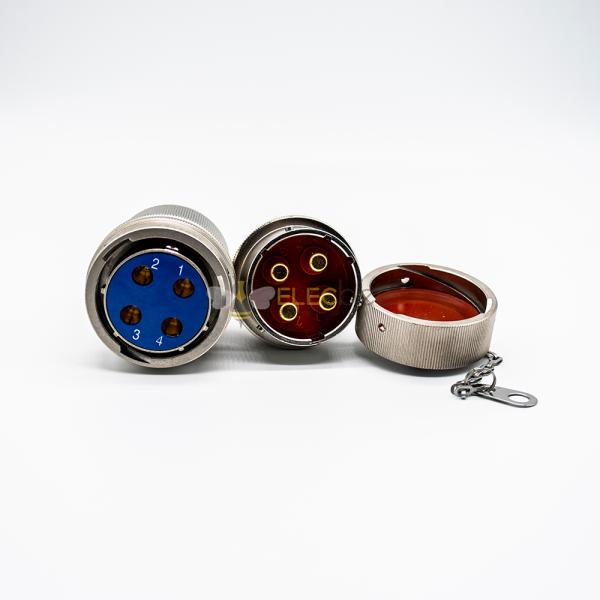

Elecbee 4 Pin Plug And Socket 22 Shell Size Female Butt-jiont Male Y50X Bayonet Coupling Solder cup cable Aluminum alloy Connector

Elecbee 4 Pin Plug And Socket 22 Shell Size Female Butt-jiont Male Y50X Bayonet Coupling Solder cup cable Aluminum alloy Connector

Name: 4 Pin Plug And Socket 22 Shell Size Female Butt-jiont Male Y50X Bayonet Coupling Solder cup cable Aluminum alloy Connector
Brand: Elecbee
SKU: EB-417-1024
Price: 49.58 USD
Availability: InStock

$49.58

SKU: EB-417-1024

Copy to clipboard

81 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$47.10

10-19 PCS

$44.62

20-99 PCS

$39.66

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Type

Female Plug (+$26.25) Male Socket Plug+Socket (+$75.83)

- +

Features:

Y50X,Plug&Socket&Dust Cap,22 Shell Size,4Pin,Straight,Bayonet Coupling,Aluminum alloy,Plug Female,cable,Solder cup,Socket,Male,cable,Solder cup
Adopts bayonet connection system, featuring fast connection and fast separation, small size and light weight
Contact parts are welded, the shell is shielded and unshielded, and multiple coatings are available
Socket has general sealing and glass sintered sealing types to suit different working environments
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

Elecbee 4 Pin Plug And Socket 22 Shell Size Female Butt-jiont Male Y50X Bayonet Coupling Solder cup cable Aluminum alloy Connector

EB-417-1024

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Panel Mount
Body Material

Aluminum Alloy
Direction

Straight
Terminal type

Solder Cup
Number of Positions

4 pin
Gender

Male and Female (one Pair)
Connector Model

one pair (Plug and Socket)

Description

Applications:

Strategic and tactical system
Electronic countermeasure system
Field electrical energy
Communication signals connect the system
Aerospace navigation communication and test tracking system
Computer system
Post and telecommunication railway command system
Import medical equipment
Connection of electrical and telecommunication signals

Electrical Characteristics

Relative humidity: 92-98% at 40±2°C
Insulation resistance: ≥3000MΩ
Contact resistance: 1.5MΩ/3MΩ/5MΩ/7M
Rated voltage: 600V
Rated current: 3A / 5A / 10A / 25A

Mechanical Characteristics

Vibration: vibration frequency is 10Hz-2000Hz, acceleration 196 m/s2
Impact: acceleration 980.7 m/s2
Collision: 392 m/s2
Mechanical life: 500 times

Environmental Characteristics

Working temperature: -55 ° C ~ +125 ° C
Working pressure: 101.33kPa-1.33Pa
Air tightness: ordinary socket: no more than 6 × 10-2 PaL / s
Glass sintered socket: no more than 1×10-5 PaL/s

Material:

Shell: aluminum alloy
Insulator: thermoplastic material
Contact: copper alloy gold plating/nickel plating
