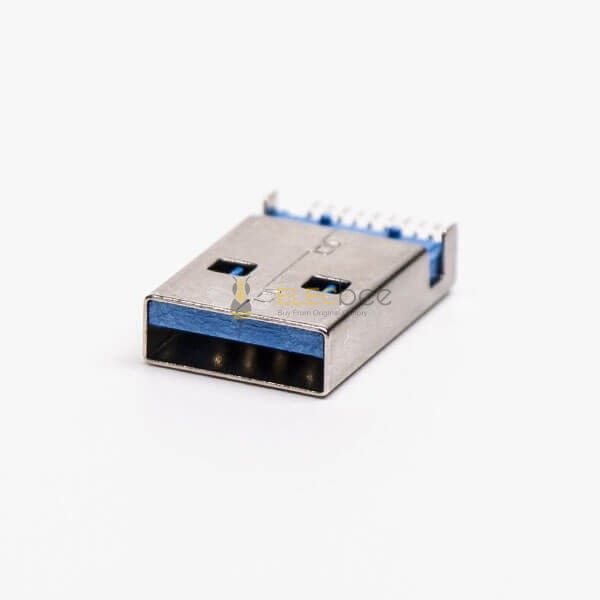

USB 3.0 Male Type A Connector Straight SMT Offset Type

USB 3.0 Male Type A Connector Straight SMT Offset Type

Name: USB 3.0 Male Type A Connector Straight SMT Offset Type
Brand: Elecbee
SKU: EB-500-2021
Price: 1.50 USD
Availability: InStock

$1.50

SKU: EB-500-2021

Copy to clipboard

85 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$1.42

10-19 PCS

$1.35

20-99 PCS

$1.20

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

USB3.0,Type A,Male/Plug,Straight/180°,SMT,Offset Type,PCB Mount;
Capable of transferring data up to 5Gb/s;
Full metal shielding;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

USB 3.0 Male Type A Connector Straight SMT Offset Type

EB-500-2021

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Solder Type
Installation characteristics

Surface Mount / Offset Type
Gender

Male
direction

Straight
Connector Type

Type A
Number of Positions

9pin
Port number

Single
waterproof level

Not Waterproof
Standard

USB 3.0

Description

Applications:

Desktop Computer and Motherboard
Notebook
Memory Card Reader
Set top box
Consumer Solid State Drives
LCD TV Panel
Music Synthesizer

Electrical Characteristics

Contact Resistance:30Ω Maximum
Contact Current Rating:1.50A
Dielectric Withstanding Voltage:100V R.M.S
Insulation Resistance 1000 Megohms Min
Operating Temperoture:-45°C ~ +80°C

Mechanical Characteristics

Mating Force:3.57kg Max
Unmating Force:1.02kg Min

Environmental Characteristics

Operating Temperature：-45°C~ + 85°C

Material:

Part	Material	Finish
Housing	High Temperature Polymer	UL94V-0
Shell	Stainless Steel	------
Contact	Copper Alloy	------
