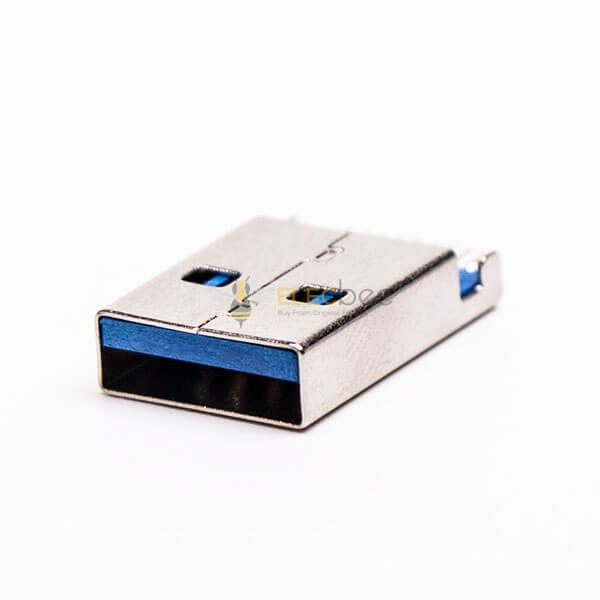

USB 3.0 Male Connector Type A Offset Type SMT for PCB Mount
Features:
- USB3.0,Type A,Male/Plug,Straight/18,SMT,Offset Type,PCB Mount;
- Capable of transferring data up to 5Gb/s;
- Full metal shielding;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
PCB Mount
-
Terminal type
Solder Type
-
Gender
Male
-
direction
Straight
-
Installation characteristics
Surface Mount / Offset Type
-
Number of Positions
9pin
-
Port number
Single
-
waterproof level
Not Waterproof
-
Standard
USB 3.0
-
Connector Type
Type A
- Description
Applications:
- Desktop Computer and Motherboard
- Notebook
- Memory Card Reader
- Set top box
- Consumer Solid State Drives
- LCD TV Panel
- Music Synthesizer
Electrical Characteristics
- Contact Resistance:30Ω Maximum
- Contact Current Rating:1.50A
- Dielectric Withstanding Voltage:100V R.M.S
- Insulation Resistance 1000 Megohms Min
- Operating Temperoture:-45°C ~ +80°C
Mechanical Characteristics
- Mating Force:3.57kg Max
- Unmating Force:1.02kg Min
Environmental Characteristics
- Operating Temperature：-45°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | UL94V-0 |
| Shell | Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
