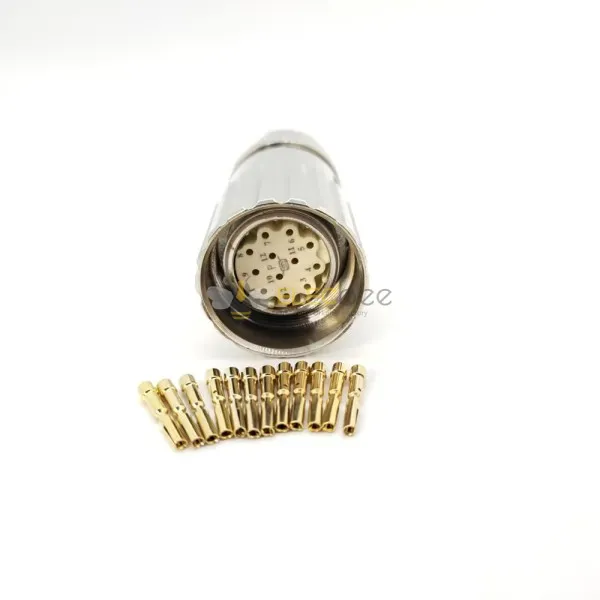

M23 12 Pin Connector Female plug Straight Solder Type for Cable Connector Shield
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Cable
-
Terminal type
Solder Type
-
Gender
Female
-
direction
Straight
-
Number of Positions
12 pin
- Description
Electrical Characteristics
- Rated current: 8A/ 20A/28A
- Contacts resistance: ≤ 3 mΩ
- Insulation resistance: ≥1010MΩ
- Rated voltage: 125V/200V/260V/300V
- Standard: IEC 61076-2-104
Mechanical Characteristics
- Coupling: thread locking
Environmental Characteristics
- Ambient temperature: -40°C ~ + 125°C
- IP rating: IP67
Material:
- Contacts plating: Gold plated
- Shell: Copper Alloy
- Connector contacts: Brass with gold plated
- Coupling nut/screw: Brass with nickel plated screw
- Insert: PBT/PA66+GF20%
- Shielding: Non-Shielded
- Sealing: Epoxy resin
