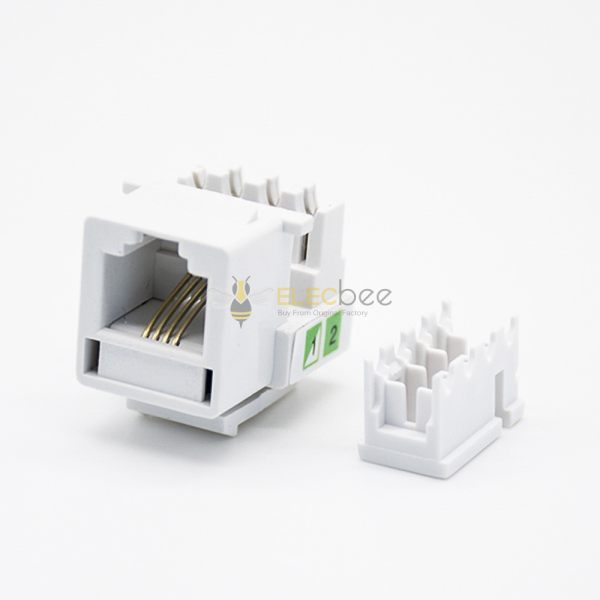

RJ11 Socket Module 4P4C Single Port White PCB Mount Unshielded CAT3

RJ11 Socket Module 4P4C Single Port White PCB Mount Unshielded CAT3

Name: RJ11 Socket Module 4P4C Single Port White PCB Mount Unshielded CAT3
Brand: Elecbee
SKU: EB-500-8020
Price: 0.33 USD
Availability: InStock

$0.33

SKU: EB-500-8020

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$0.31

10-19 PCS

$0.30

20-99 PCS

$0.26

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

RJ11 Jack,4P4C,Single Port,1*1,Angled,Gold,Through Hole,PCB Mount,Unshielded,without LED,without Filtered,CAT3
Comprehensive range for all application needs;
Stackable side by side design;
Supports wide variety of low-speed networking applications;
Supports high-speed Gigabit Ethernet applications;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

RJ11 Socket Module 4P4C Single Port White PCB Mount Unshielded CAT3

EB-500-8020

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
direction

Right Angle
Shield

Unshielded
LED

No
filter

No
Connector Type

Socket
Port number

Single
waterproof level

Not Waterproof
Continuous plating

Gold
Number of contacts

4p4c
Terminal type

Through Hole
Number of Rows

1×1

Description

Applications:

Routers
Ethernet switches
ATMs
Point of sales terminals
Vending machines
Set-top boxes
Technology analysis equipment
Laptops
Phone line security systems

Electrical Characteristics

Current rating: 3A continuous
Insulation resistance: 500MΩ min.
Dielectric withstanding voltage: 1500V min.
Voltage rating 1000V rms

Mechanical Characteristics

Mating force: 5N to 20N
Unmating force: 8N to 20N
Durability:10,000 mating cycles

Environmental Characteristics

Operating Temperature: -40°C~ + 120°C

Material:

Part	Material	Finish
Housing	Nylon 46 glass filled	UL94V-0
Shield	Copper Alloy	Nickel Plating
Contact	Copper Alloy	Au over nickel
