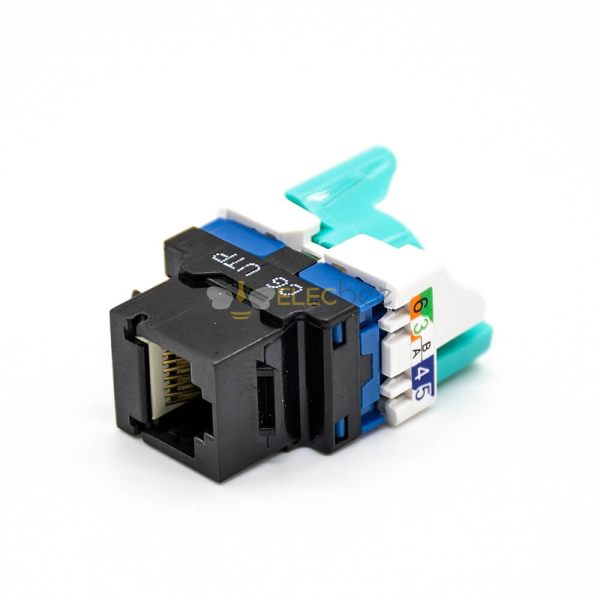

Modular Jack RJ45 Cat6 Toolless Unshielded Through Hole Single Port 180 Degree
- Specification
-
Product Attribute
Attribute Value
Search
-
Installation method
Panel Mount
-
Number of contacts
8p8c
-
Connector Type
Socket
- Description
Electrical Characteristics
- Current rating: 3A continuous
- Insulation resistance: 500MΩ min.
- Dielectric withstanding voltage: 1500V min.
- Voltage rating 1000V rms
Mechanical Characteristics
- Mating force: 5N to 20N
- Unmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 120°C
Material:
| Part | Material | Finish |
| Housing | Nylon 46 glass filled | UL94V-0 |
| Shield | Copper Alloy | Nickel Plating |
| Contact | Copper Alloy | Au over nickel |
- Drawings
