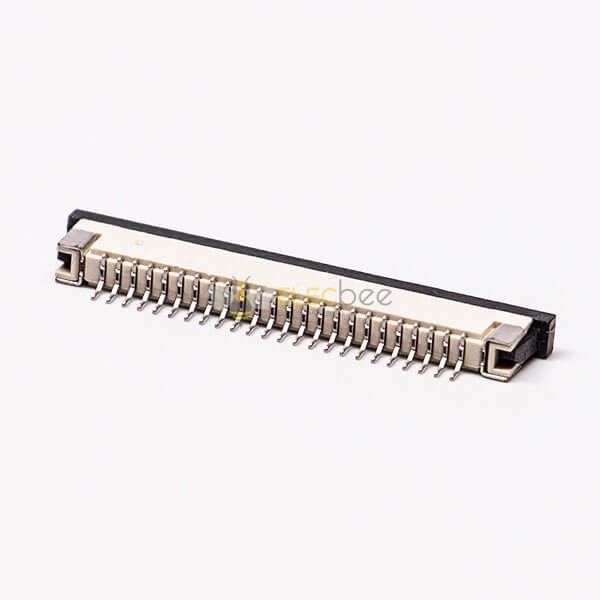

FPC Connector Jack 1.0PH 24 Pin Bottom Contact Style Slider Type for Surface Mount 2.5H

FPC Connector Jack 1.0PH 24 Pin Bottom Contact Style Slider Type for Surface Mount 2.5H

Name: FPC Connector Jack 1.0PH 24 Pin Bottom Contact Style Slider Type for Surface Mount 2.5H
Brand: Elecbee
SKU: EB-500-9022
Price: 1.21 USD
Availability: InStock

$85.16

SKU: EB-500-9022

Copy to clipboard

86 Sales

0 reviews

In Stock Availability

Orders under $800 , tax included.（U.S. only)

Bulk Purchase, Auto Savings:

$1.15

10-19 PCS

$1.09

20-99 PCS

$0.97

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

FFC/FPC Connector,PCB Mount,1.0 Pitch,24 PIN,Bottom Contact,Slider Type,Solder Type,2.5H;
offer the best combination of signal;
Superior contact reliability, compactness, wide circuit size range;
Narrower width and shorter length dimensions, provide additional space savings;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

FPC Connector Jack 1.0PH 24 Pin Bottom Contact Style Slider Type for Surface Mount 2.5H

EB-500-9022

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Solder Type

Description

Applications:

Automobile Infotainment: Display Audio, Car Navigation
Consumer: Flat Panel TV, Portable Game, Personal Navigation Equipment
Datacommunications: Optical Disk Drives, Tablet and Notebook PCs, Printers and Copiers

Electrical Characteristics

Voltage (max.): 50V
Current (max.): 0.5A
Contact Resistance: 40 milliohms max.
Insulation Resistance: 50 Megohm min.
Halogen Free: Low Halogen

Mechanical Characteristics

Durability (min.): 25 cycles

Environmental Characteristics

Operating Temperature: -40°C~ + 125°C

Material:

Part	Material	Finish
Housing	LCP UL94V-0	Beige
Cover	PA6T UL94V-0	Black
Contact	Phosphor Bronze	Au/Ni
