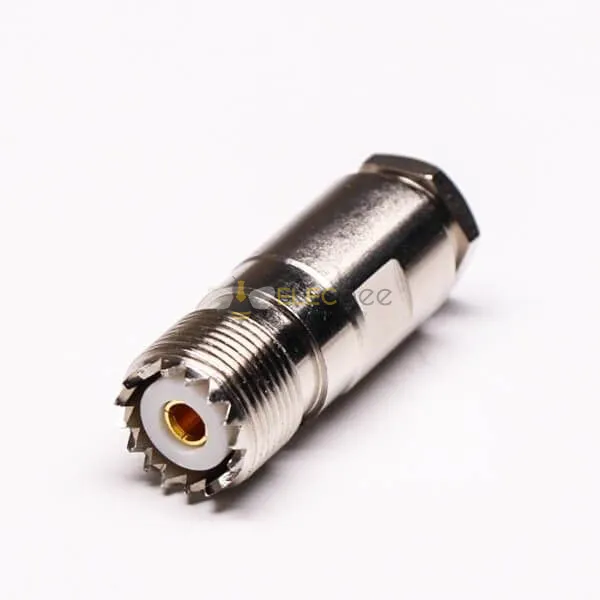

UHF 180 Degree Cable Connector Female Straight with Clamp Type
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Cooper
-
Installation method
Cable
-
Terminal type
Solder Type
-
Gender
Female
-
direction
Straight
-
Polarity
Standard
-
Function
Other
-
Coating
Nickel Plating
-
Installation characteristics
None
-
Impedance
50 Ω
-
Outer conductor connection
Clamp
- Description
Electrical Characteristics
- Impedance：Non-constant
- Frequency Range: 0~300MHz
- voltage Rating: 500 volts peak
Mechanical Characteristics
- Coupling: 5/8-24 threaded coupling
- Cable Affixment: Braid Solder, Set screw, clamp and crimp
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range:
Mica-filled phenolic insulators: -55°C ~ +149°C
Copolymer of styrene and polystyrene: -55°C ~ +85°C
TFE insulators: -65°C ~ +165°C - Weatherproof: Except as noted, all UHF series are non-weatherproof
Material:
| Part | Material | Finish |
| Housing | Brass | Ni |
| Contact | Phosphor Bronze | Au |
- Drawings
