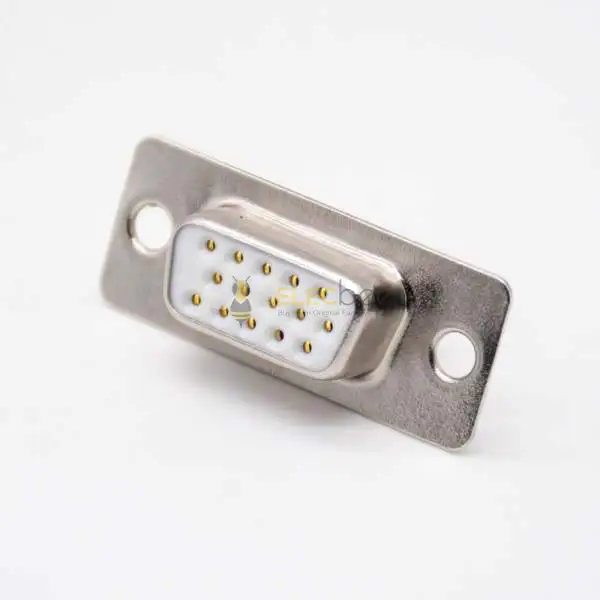

15 Pin D Sub Female Connector Solder Cup Straight Three Rows Machined
Features:
- D-sub Connector,Machined,Female,15 Pin,Three Rows,Nickel Plating,Straight,Solder Cup
- Industry standard interfacing RS232 and RS449 mating configurations per EIA standards;
- Inserts are flame-retardant thermoplastic;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
- Specification
-
Product Attribute
Attribute Value
Search
-
Gender
Female
-
direction
Straight
-
Terminal type
Solder Cup
-
Number of Positions
15 pin
-
Number of Rows
3
-
Continuous plating
Nickel
-
Connector Type
Machined D-sub
- Description
Applications:
- Business equipment
- Electronic office systems
- Data communications
- Technology equipment
- Mobile communications
- Consumer electronics
Electrical Characteristics
- Voltage Rating :250V AC/ rms 50Hz
- Withstanding Voltage :1000V AC/ rms 50Hz for one minute
- Insulation Resistance 1000MΩ at 500V DC
- Contact Resistance 20 mΩ max.
Mechanical Characteristics
- Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
- Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.
Environmental Characteristics
- Operating Temperature:-67°F (-55°C) to +257°F (125°C)
Material:
| Part | Material | Finish |
| Body | Steel | ------- |
| Center Contact Pin | Brass | Gold |
| Insulator | Glass-filled thermoplastic | ------ |
