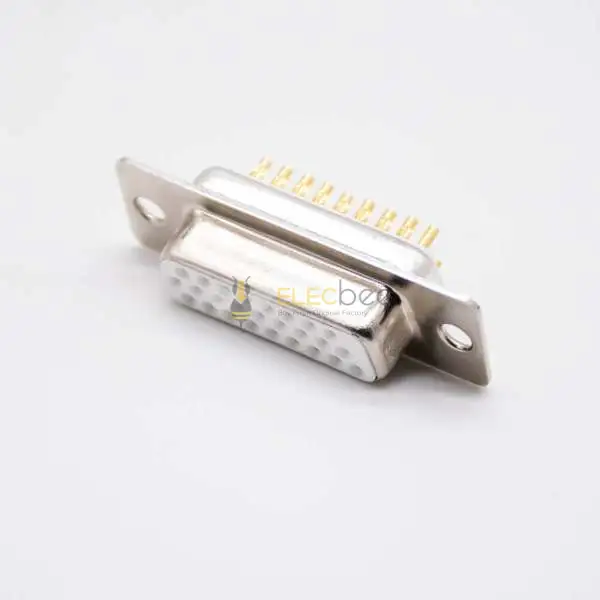

D Sub Female Connector 26 Pin Machined Three Rows Nickel Plating Straight Solder Cup

D Sub Female Connector 26 Pin Machined Three Rows Nickel Plating Straight Solder Cup

Name: D Sub Female Connector 26 Pin Machined Three Rows Nickel Plating Straight Solder Cup
Brand: Elecbee
SKU: EB-601-0097
Price: 5.67 USD
Availability: InStock
Rating: 97 / 20 (20 reviews)

$5.67

SKU: EB-601-0097

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$5.39

10-19 PCS

$4.85

20-99 PCS

$3.88

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

D Sub Female Connector 26 Pin Machined Three Rows Nickel Plating Straight Solder Cup

EB-601-0097

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Gender

Female
direction

Straight
Terminal type

Solder Cup
Number of Positions

26 pin
Number of Rows

3
Continuous plating

Nickel
Connector Type

Machined D-sub

Description

Electrical Characteristics

Voltage Rating :250V AC/ rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.

Mechanical Characteristics

Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
