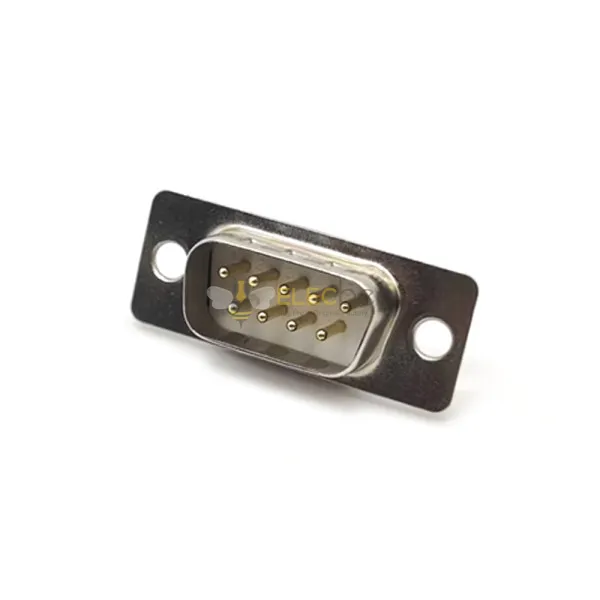

9 Pin D Sub Connector Standard Stamped Male Two Rows Straight Solder Cup

9 Pin D Sub Connector Standard Stamped Male Two Rows Straight Solder Cup

Name: 9 Pin D Sub Connector Standard Stamped Male Two Rows Straight Solder Cup
Brand: Elecbee
SKU: EB-600-0049
Price: 0.63 USD
Availability: InStock

$10.29

SKU: EB-600-0049

Copy to clipboard

84 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$0.60

10-19 PCS

$0.57

20-99 PCS

$0.50

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

D-sub Connector,Standard,Stamped,Male,9 Pin,Two Rows,Nickel Plating,Straight,Solder Cup
Industry standard interfacing RS232 and RS449 mating configurations per EIA standards;
Inserts are flame-retardant thermoplastic;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

9 Pin D Sub Connector Standard Stamped Male Two Rows Straight Solder Cup

EB-600-0049

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Gender

Male
direction

Straight
Terminal type

Solder Cup
Number of Positions

9pin
Number of Rows

2
Continuous plating

Nickel

Description

Applications:

Business equipment
Electronic office systems
Data communications
Technology equipment
Mobile communications
Consumer electronics

Electrical Characteristics

Voltage Rating :250V AC/ rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.

Mechanical Characteristics

Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
