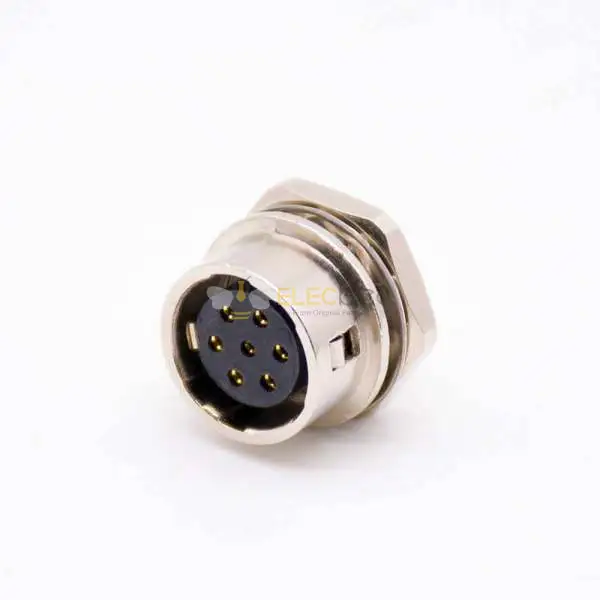

Elecbee HR10 Circular Connector Female Receptacle 7 Pin Straight PCB Through Hole Back Mount Circular Push-Pull Connector

Elecbee HR10 Circular Connector Female Receptacle 7 Pin Straight PCB Through Hole Back Mount Circular Push-Pull Connector

Name: Elecbee HR10 Circular Connector Female Receptacle 7 Pin Straight PCB Through Hole Back Mount Circular Push-Pull Connector
Brand: Elecbee
SKU: HR10A-7R-7SA
Price: 7.08 USD
Availability: InStock

$6,47

SKU: HR10A-7R-7SA

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$6.73

10-19 PCS

$6.37

20-99 PCS

$5.66

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Female Receptacle,7 Pin,Straight,PCB,Through Hole,Back Mount,HR10,Circular Push-Pull Connector
Push-pull self-locking connection is simple and fast;
Exquisite self-locking device, protect the connection is firm and reliable;
Reasonable key position design with anti-blind insertion function and multiple key position changes;
Miniaturized compact structure design can effectively save equipment space;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

Elecbee HR10 Circular Connector Female Receptacle 7 Pin Straight PCB Through Hole Back Mount Circular Push-Pull Connector

HR10A-7R-7SA

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Gender

Female
direction

Straight
Number of Positions

7pin
Installation characteristics

Back Mount
Connector Type

Socket

Description

MATERIAL:

Shell:Zinc alloy and brass
Insulator: Polyamide resin, PBT resin
Contact :Copper alloy

Main Application:

Electronic
Instrumentation
Video processing
Technology equipment

Electrical Characteristics:

Contact resistance：10mø min. Measured at DC 1A
Insulation resistance：1,000Mø min. Measured at DC 100V
Withstanding voltage：No flashover or dielectric breakdown. AC 300V for one minute, 4 contacts : AC 500V for 1 minute
Vibration resistance：No electrical discontinuity of 10µs or greater 10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions,for 2 hours each
Shock resistance： No electrical discontinuity of 10µs or greater Acceleration : 490m/s2 , duration : 11ms 3 directions,3 times each
Mating Cycles Contact resistance : 15mø min. 1,000 times

Environmental Characteristics:

Humidity resistance：5Mø min. (at high humidity)50Mø min. (at dry)
Temperature : 40℃, relative humidity : 90 to 95%,left for 96 hours
