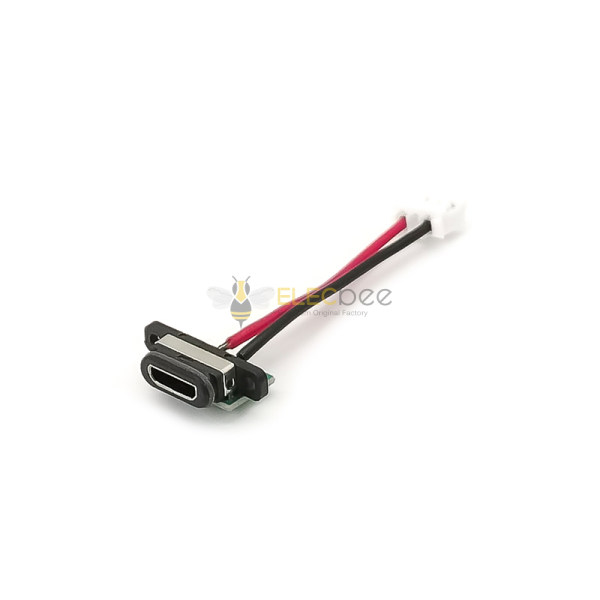

MICRO b Connector Waterproof MICRO USB 5Pin Connector B Type IPX8 Rating 3A

MICRO b Connector Waterproof MICRO USB 5Pin Connector B Type IPX8 Rating 3A

Name: MICRO b Connector Waterproof MICRO USB 5Pin Connector B Type IPX8 Rating 3A
Brand: Elecbee
SKU: EB-504-5010
Price: 2.33 USD
Availability: InStock
Rating: 5 (1 reviews)

$2.33

SKU: EB-504-5010

Copy to clipboard

161 Sales

1 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$2.21

10-19 PCS

$2.10

20-99 PCS

$1.86

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Waterproof MICRO USB,B Type,Female,5 Pin,IPX8,SMT
Equipped with 5 circuits capable of 480Mb/s high-speed transmissions
The smallest USB 2.0 interface
Prevents corrosion and improves reliability
Meets environmental, health and safety requirements
Optimized design structure with epoxy glue-based plastic sealing
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

MICRO b Connector Waterproof MICRO USB 5Pin Connector B Type IPX8 Rating 3A

EB-504-5010

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

SMT
Gender

Female
Connector Type

Micro B
Number of Positions

5pin
waterproof level

IPX8

Description

MATERIAL:

Housing: High temperature thermoplastic, complies with UL 94V-0, black colour
Shell: Stainless steel
Contact: Copper alloy, selective gold plated on contact area, 50u” min. nickel under-plated gold flash overall or tin 100u”min. selective plated.

Main Application:

Charger
Car Media Player/Hub
Connector Hub
Flash Disk
Mobile Phone/Tablet
VR Camera
Hard Disk Drives
Solid State Drives
Industrial Computer
POS System
Technology

Electrical Characteristics:

Low Level Contact: Initial 30mΩ max. ; Final ∆R: 20mΩ max
Insulation: 100MΩ min.
Current Rating/Temperature Rise: ∆T30°C max.
Voltage: 30V DC.
Current: Signal contacts 1.0A, Power contacts 1.8A

Mechanical Characteristics:

Insertion Force: 35N (3.57 Kgf) max.
Withdrawal Force: 10N (1.02 Kgf) min.
Durability: 10,000 cycle unplug / plug 8N (0.81 Kgf) min.
Vibration: No disturbance greater than 1μs
Mechanical Shock: No disturbance greater than 1μs

Environmental Characteristics:

Operating Temperature: -40°C to +85°C
Shipping Storage Temperature: -20°C to +60°C
Thermal Shock: No physical damage, contact resisitance ∆R=10mΩ max.
Cyclic Temperature Humidity: No physical damage, contact resisitance ∆R=10mΩ max.
Temperature Life: No physical damage, contact resisitance ∆R=10mΩ max.
Salt Spray: No physical damage, contact resisitance ∆R=10mΩ max.
Solderability: 95% of immersed area, No voids pin holes
