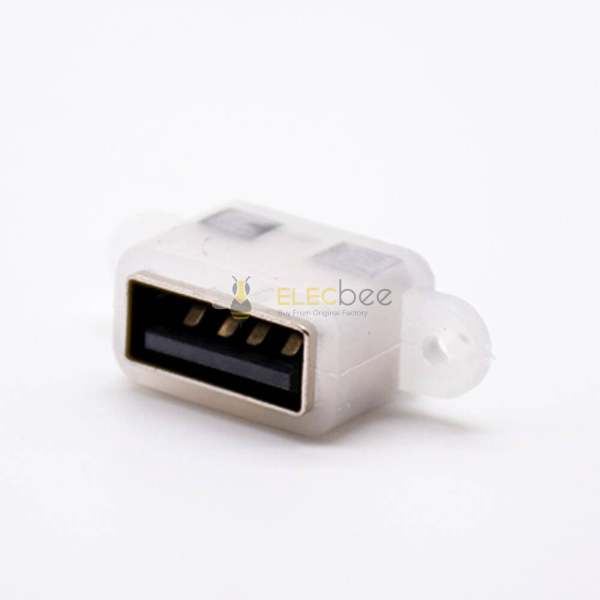

USB Waterproof Socket 4p Female IPX6 SMT Straight Type A Female Connector

USB Waterproof Socket 4p Female IPX6 SMT Straight Type A Female Connector

Name: USB Waterproof Socket 4p Female IPX6 SMT Straight Type A Female Connector
Brand: Elecbee
SKU: EB-504-0005
Price: 1.17 USD
Availability: InStock

$3,49

SKU: EB-504-0005

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$1.11

10-19 PCS

$1.05

20-99 PCS

$0.94

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Waterproof USB,Female,4 Pin,Type A,IPX6,SMT,Straight
Standard USB type A mating interface
No special cable/plug side solution required
Provides secure mating and data transmission
Meets environmental, health and safety standards
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

USB Waterproof Socket 4p Female IPX6 SMT Straight Type A Female Connector

EB-504-0005

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Gender

Female
direction

Straight
Number of Positions

4pin
Connector Type

Type A
Installation method

SMT
waterproof level

IPX6

Description

MATERIAL:

Housing and Nut: Glass filled thermoplastic, UL94 V-0, black
Gasket and Seals: Silicon rubber shield, stainless steel
PCB: FR4 fiberglass
Contacts: Copper alloy plated with gold over nickel
Shield: Stainless steel

Main Application:

Base Station
Power
Router
Server
Power Generation
Automation
Smart Grid
LED Lighting
Robotics
MRI
Ultrasonic
CT
Monitoring

Electrical Characteristics:

DWV 500 VAC / 1 minute
Speed: 480Mb/s
Contact Resistance: 30mΩ max.
Insulation Resistance: 1000MΩ min.
Current Rating: 1.5A

Mechanical Characteristics:

Wire Gauge (where applicable): 24AWG/28AWG (power/signal)
Cable Range (where applicable): 3.50mm to 6.80mm OD
Durability: 1500 mating cycles

Environmental Characteristics:

Operating Temperature: -45°C to +85°C
RoHS compliant
