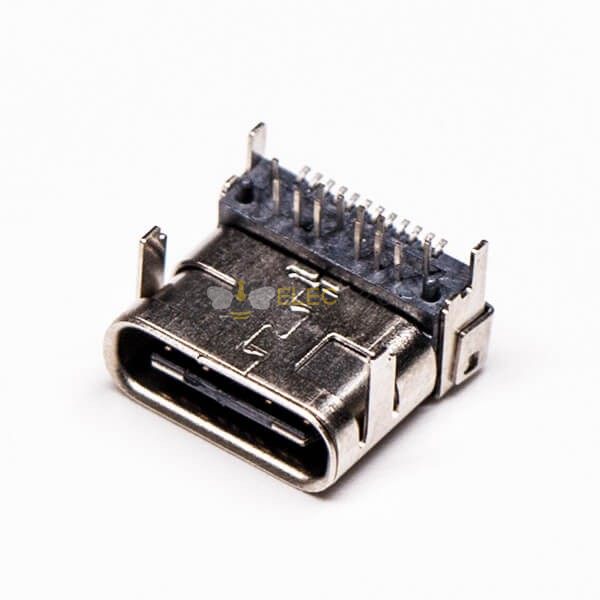

Type C USB Connector Right Angled Jack SMT and DIP

Type C USB Connector Right Angled Jack SMT and DIP

Name: Type C USB Connector Right Angled Jack SMT and DIP
Brand: Elecbee
SKU: EB-500-5022
Price: 2.75 USD
Availability: InStock
Rating: 129 / 27 (27 reviews)

$2.75

SKU: EB-500-5022

Copy to clipboard

83 Sales

27 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$2.61

10-19 PCS

$2.35

20-99 PCS

$1.88

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

Packing

- +

Contact Sales

Type C USB Connector Right Angled Jack SMT and DIP

EB-500-5022

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

PCB Mount
Terminal type

Solder Type
Gender

Female
direction

Right Angle
Installation characteristics

Through Hole / Surface Mount
Number of Positions

24pin
Port number

Single
waterproof level

Not Waterproof
Standard

USB 3.0
Connector Type

Type C

Description

Electrical Characteristics

voltage Rating: 5V AC
Contact Rating:5.0A
Contact Resistance: 40 milliohms max
Insulation Resistance: 100 megohms
Withstanding Voltage: 100V AC

Mechanical Characteristics

Mating force: 5N to 20N
UNmating force: 8N to 20N
Durability:10,000 mating cycles

Environmental Characteristics

Operating Temperature：-30°C~ + 85°C

Material:

Part	Material	Finish
Housing	High Temperature Polymer	UL94V-0, Black
Shell	Stainless Steel	------
Contact	Copper Alloy	------
