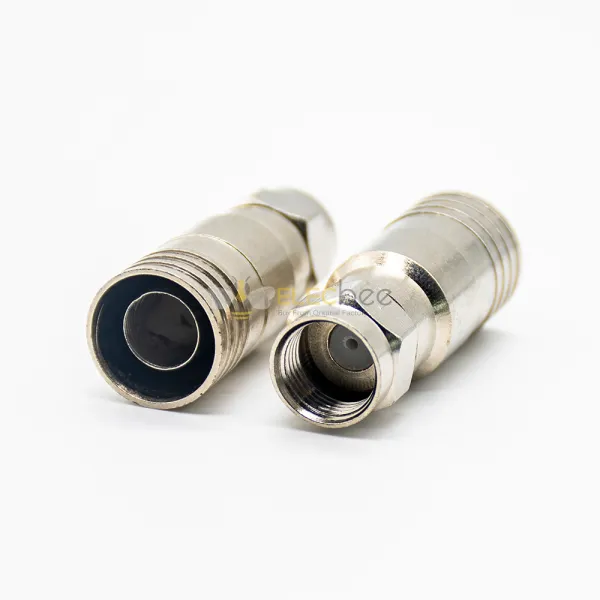

F Type for RG11 Coaxial Connector Male Straight Connector Solder Type
Product features:
- F Connector, Coaxial Connector, Male/Plug, Straight/180°, Solder Type,for RG11;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Consumer Electronic: Statellite Boxes, set top boxes
- Telecommunications: CATV, CATV Networks.
- Specification
-
Product Attribute
Attribute Value
Search
-
Body Material
Zinc Alloy
-
Installation method
Cable
-
Terminal type
Solder Type
-
Gender
Male
-
direction
Straight
-
Polarity
Standard
-
Function
Other
-
Coating
Nickel Plating
-
Installation characteristics
None
-
Impedance
75 Ω
-
Outer conductor connection
Solder
- Description
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3Ghz
- VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
- Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance ≦ 10 mΩ
- Outer Contact Resistance ≦ 5 mΩ
- Insultation Resistance ≧ 1000 mΩ
- RF Leakage -100dB min @1GHz
Mechanical Characteristics
- Coupling: 3/8-32 thread
- Cable Retention: 20 lbs min.
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Temprature Range: -40°C ~ +60°C
Material:
| Part | Material | Finish |
| Body | ZINC NI:80-120u" | NI:80-120u" |
| Center Contact Pin | phosphor | SN |
| Insulator | PP | White |
