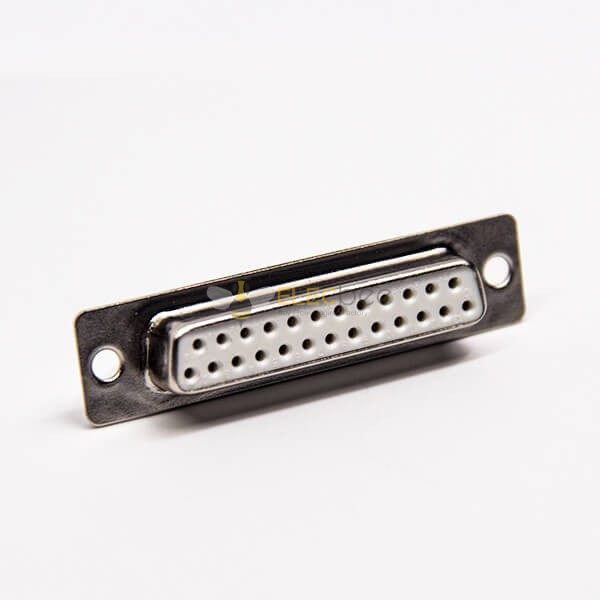

Standard 25 Pin Female D SUB Connector Solder Type for Cable

Standard 25 Pin Female D SUB Connector Solder Type for Cable

Name: Standard 25 Pin Female D SUB Connector Solder Type for Cable
Brand: Elecbee
SKU: EB-600-0022
Price: 2.47 USD
Availability: InStock
Rating: 97 / 20 (20 reviews)

$2.47

SKU: EB-600-0022

Copy to clipboard

80 Sales

20 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$2.35

10-19 PCS

$2.12

20-99 PCS

$1.70

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Contact Sales

Standard 25 Pin Female D SUB Connector Solder Type for Cable

EB-600-0022

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Installation method

Cable
direction

Straight
Terminal type

Solder Cup
Continuous plating

stamped pin
filter

No
Number of Positions

25 pin
Connector Type

Socket
Number of Rows

2
Port number

Single
Installation characteristics

Shell (Unthreaded)
waterproof level

Not Waterproof
Continuous plating

Silver

Description

Electrical Characteristics

Voltage Rating :250V AC/ rms 50Hz
Withstanding Voltage :1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.

Mechanical Characteristics

Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.

Environmental Characteristics

Operating Temperature:-67°F (-55°C) to +257°F (125°C)

Material:

Part	Material	Finish
Body	Steel	-------
Center Contact Pin	Brass	Gold
Insulator	Glass-filled thermoplastic	------
