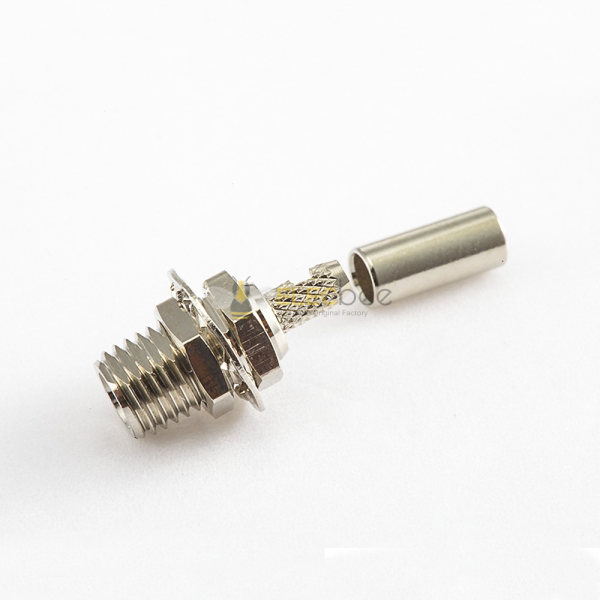

MCX Bulkhead Connector Female Straight Panel Mount for RG178 Cable

Name: MCX Connector,Female,Straight,Cable/Panel Mount,Solder,Bulkhead,Crimp,Cooper,Nickel Plating,Standard,50Ω
Brand: Elecbee
SKU: EB-211-0138
Price: 1.33 USD
Availability: InStock

$1.33

SKU: EB-211-0138

Copy to clipboard

80 Sales

0 reviews

In Stock Availability

Bulk Purchase, Auto Savings:

$1.27

10-19 PCS

$1.20

20-99 PCS

$1.07

100+ PCS

Deliver to United States

Flat Shipping Rate $10.00

- +

Features:

Push-in interface, very suitable for quick plug-in and use, convenient and fast;
Excellent broadband performance and low reflectivity, stable performance;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Contact Sales

MCX Bulkhead Connector Female Straight Panel Mount for RG178 Cable

EB-211-0138

Your Name*
Your Email*
Topic*
Qty
Message	Message
SUBMIT

Pay with Ease

Trusted Delivery

Mobile

Specification

Product Attribute

Attribute Value

Search
Body Material

Cooper
Installation method

Cable Type
Installation method

Cable Type
Installation method

Cable Type
Gender

Female
Direction

Straight
Polarity

Standard
Coating

Nickel Plating
Cable Type

RG178
Outer conductor connection

Crimp

Description

Appliance:

CaracterAerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking Systemísticas Elétricas

Electrical Characteristics

Temprature Range: -65°C ~ +155°C
Vibration : MIL-STD-202 Method204
Corrosion resistance : MIL-STD-202 Method 101

Mechanical Characteristics

Coupling: Push-in
Contact Retention: 15 lbs min.
Coupling nut torque:4lbs. min.
Durability(mating) : ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

Impedance：50 ohm
Frequency Range: 0~6Ghz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Withstanding Voltage: 1000 V rms
Working Voltage: 335 V rms
Central contact resistance : ≦ 5.0mΩ ( Milliohms max )
Outer Contact Resistance: ≦ 1.0 mΩ (Milliohms max.)
Insultation Resistance; ≧ 1000 mΩ (Megohms min.)

Material:

Main body	Brass Au	1u
Center needle	Phosphor Au	3u
Insulator	TEFLON White	------
